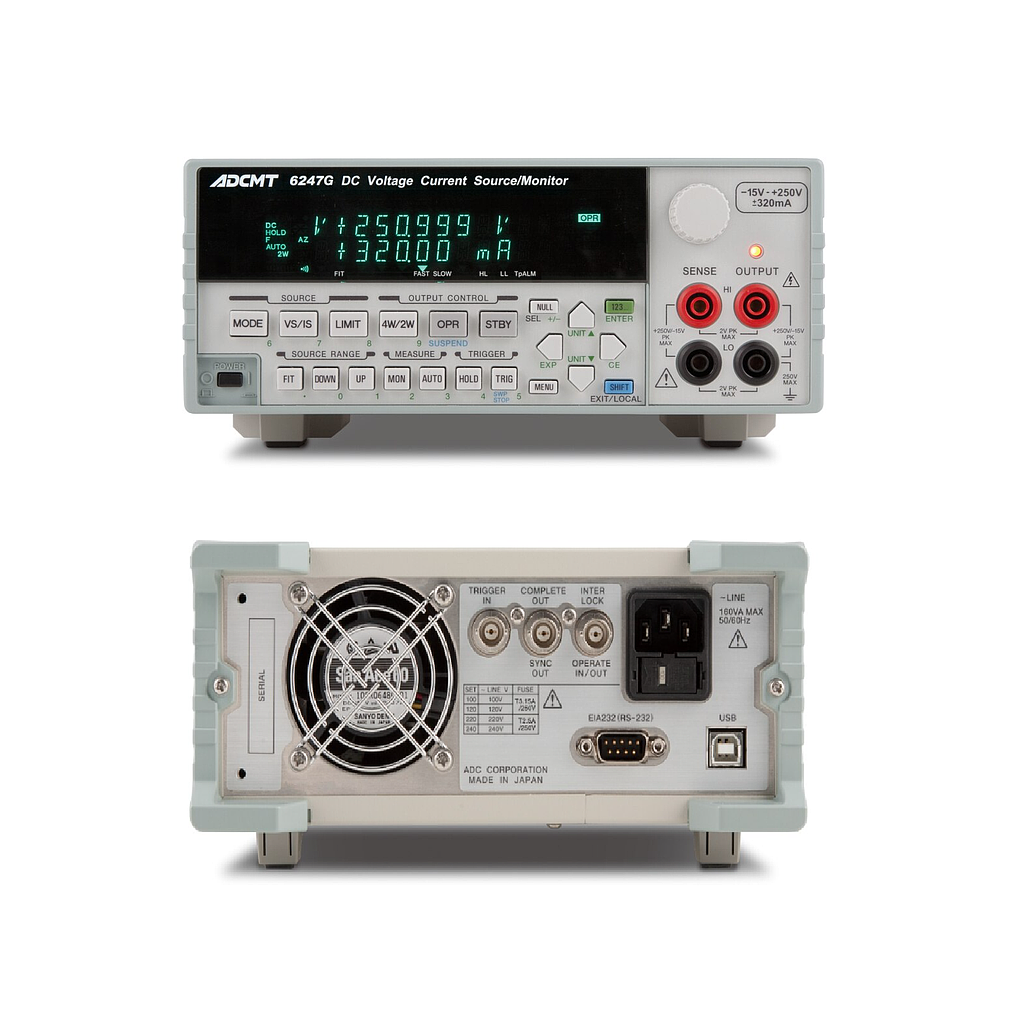

ADCMT 6247C DC Voltage Current Source/Monitor (＋250V, -15V/320 mA)

Specifications

Number of digits for generation: 4½

Output method: Bipolar

Maximum output voltage: ＋250 V, －15 V/320 mA

Minimum voltage resolution: 100 μV

Maximum output current: ±320 mA/＋250 V, －15 V

Minimum current resulution: 100 pA

Number of digits for measurement: 5½

Accuracy (typical range): 0.0002

Minimum measurement voltage resolution: 10 μV

Minimum measurement current resulution: 10 pA

Maximum measurement resistance / Minimum resolution: 125 GΩ/30 μΩ

Pulse application / Measurement: Available

Minimum pulse width: 50 μs

Interface: USB, RS232

Supplied Accessories:

Power cable (JIS 2 m): 1

Input and output cable (safety plug): 1

Banana tip adapter (for A01044): 1

Alligator clip adapter (for A01044): 1
