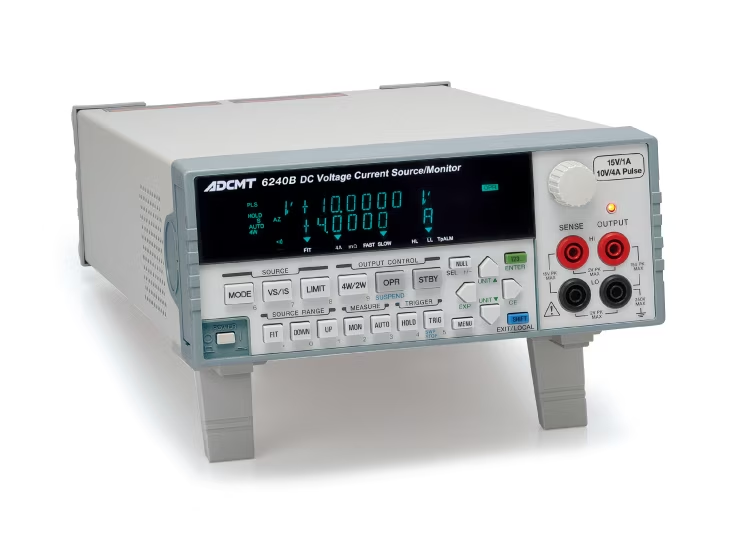

ADCMT 6240B DC Voltage Current Source/Monitor (±15V/1A)

Specifications

Number of digits for generation: 4½

Output method: Bipolar

Maximum output voltage: ±15 V/1A

Minimum voltage resolution: 10 μV

Maximum output current: ±4 A/10 V(DCで±1 A/15 V)

Minimum current resolution: 1 nA

Number of digits for measurement: 5½

Accuracy (typical range): 0.0002

Minimum measurement voltage resolution: 1 μV

Minimum measurement current resolution: 100 pA

Maximum measurement resistance / Minimum resolution: 0.75 GΩ/0.25 μΩ

Pulse application / Measurement: Available

Minimum pulse width: 50 μs

Interface: USB, GPIB

Supplied Accessories:

Power cable (JIS 2 m): 1

Input and output cable (safety plug): 1

Banana tip adapter (for A01044): 1

Alligator clip adapter (for A01044): 1
