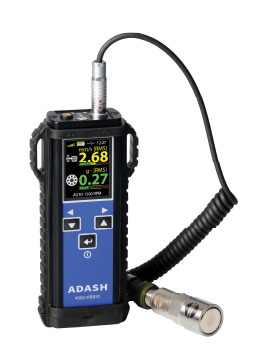

Adash A4900 VIBRIO M Vibration Meter, Analyzer, Data Collector

Input: 1 x ICP® powered accelerometer

Input range: 60 g PEAK with standard 100 mV/g sensor

(e.g. 600 g PEAK for 10 mV/g sensor, the sensitivity is editable in the unit)

Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips]

Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]

Acceleration RMS: 500 - 16 000 Hz [g]

Acceleration Peak: 500 - 16 000 Hz [g]

Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples

Velocity spectrum: 1 - 200 Hz [mm/s, ips], 200 lines

Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines

Acceleration time: 1 - 16 000 Hz [g], 2048 samples

Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines

Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]

Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]

Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples

Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz

Displacement RMS: 2 - 100 Hz [μm, mil]

Displacement 0-Peak: 2 - 100 Hz [μm, mil]

Displacement Peak-Peak: 2 - 100 Hz [μm, mil]

Temperature non-contact measurement: -70 - 380°C (-94 - 716°F)

Other functions: LED stroboscope (0.17-300 Hz, 10 - 18 000 RPM), LED torch, Vibration stethoscope

Memory: 4 MB for data 120960 overall values 900 measurements of 800 line spectra or 2048 sample time signals may be stored

Data storing: Off-Route, Route with DDS software for Vibrio M (free download)

Interface: USB C - 3.0, 2.0 compatible

Software: Free version of DDS software (limited database size)

Display: Colour graphic TFT display 240x320 pixels, diagonal 2.2“ (54 mm), sunlight readable

Output: 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening)

Power: Rechargeable Li-Ion battery, 16 hours of continuous operation, USB-C charging

Temperature: Operating: -5°C to 55°C

Dimensions: 170 x 85 x 40 mm

Weight: 380 g (without cable, sensor and magnet), 590 g (including cable, sensor and magnet)

Accessories: vibration sensor, coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, USB cable, measuring tip for manual pressure on the sensor, transport case, USB fl ash disc with the manual
