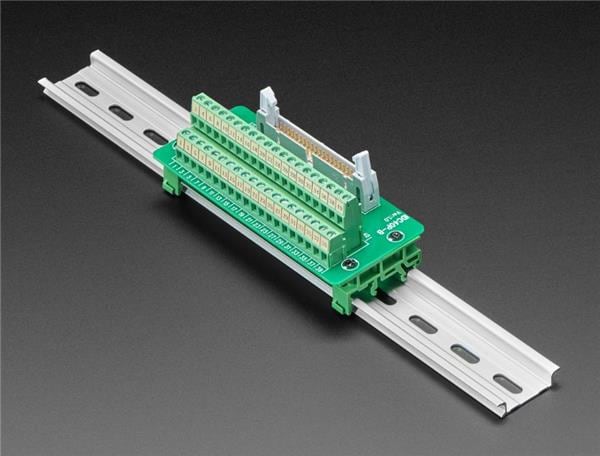

Adafruit 4437 IDC to Terminal Block Adapter DIN Rail 2x20 IDC to Terminal Block Adapter Breakout
ManufacturerAdafruit(View more products from this manufacturer)
Model4437
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Pitch: 2.54 mm
Width: 51 mm
Height: 48.7 mm
Length: 121 mm
Current Rating: 800 mA
Mounting Style: DIN Rail
Wire Gauge Max: 14 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Connection Method: Screw
Number of Positions: 40 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 20 C
