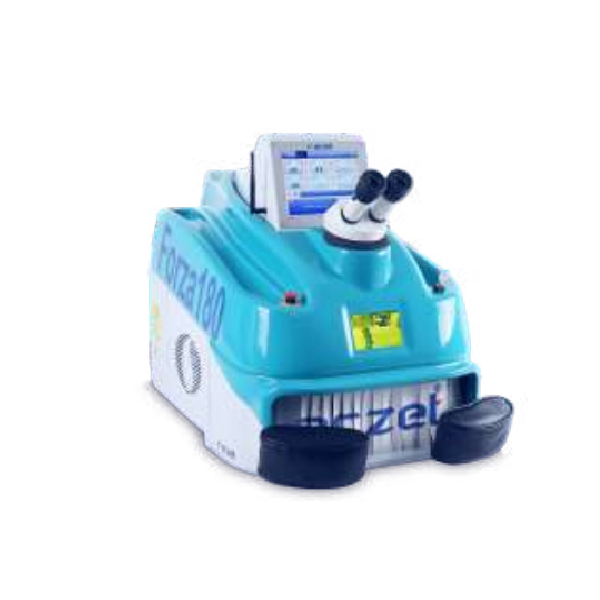

Aczet Forza 180-3D Laser Spot Welding Machine (1064nm, 90W)
ManufacturerAczet(View more products from this manufacturer)
ModelForza 180-3D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Laser Source: YAG
Wavelength: 1064nm
Laser Power: 90 W
Pulse Duration: 0.1-20ms
Pulse Frequency: 0.5-30Hz
Max Peak Power: 9kW
Max Pulse Energy: 180J
Microscope: Lynx Stereo 3D Vision
Spot Diameter: 0.2/2mm Motorised (0.1mm optional)
Modes (Theme): Light
Air Nozzle: Yes
Cooling System: Double cooling
Internal Chamber Control: Joystick
Wave Programs: Pulse Shaping 6 Preset
Programmable Memory: 100
Display: 8" Colour TFT Touch Screen
Power Supply: 230V AC, 50/60 Hz (110V available on request)
Dimensions (LxWxH): 860 x 500 x 580 mm
Weight: 55kg
