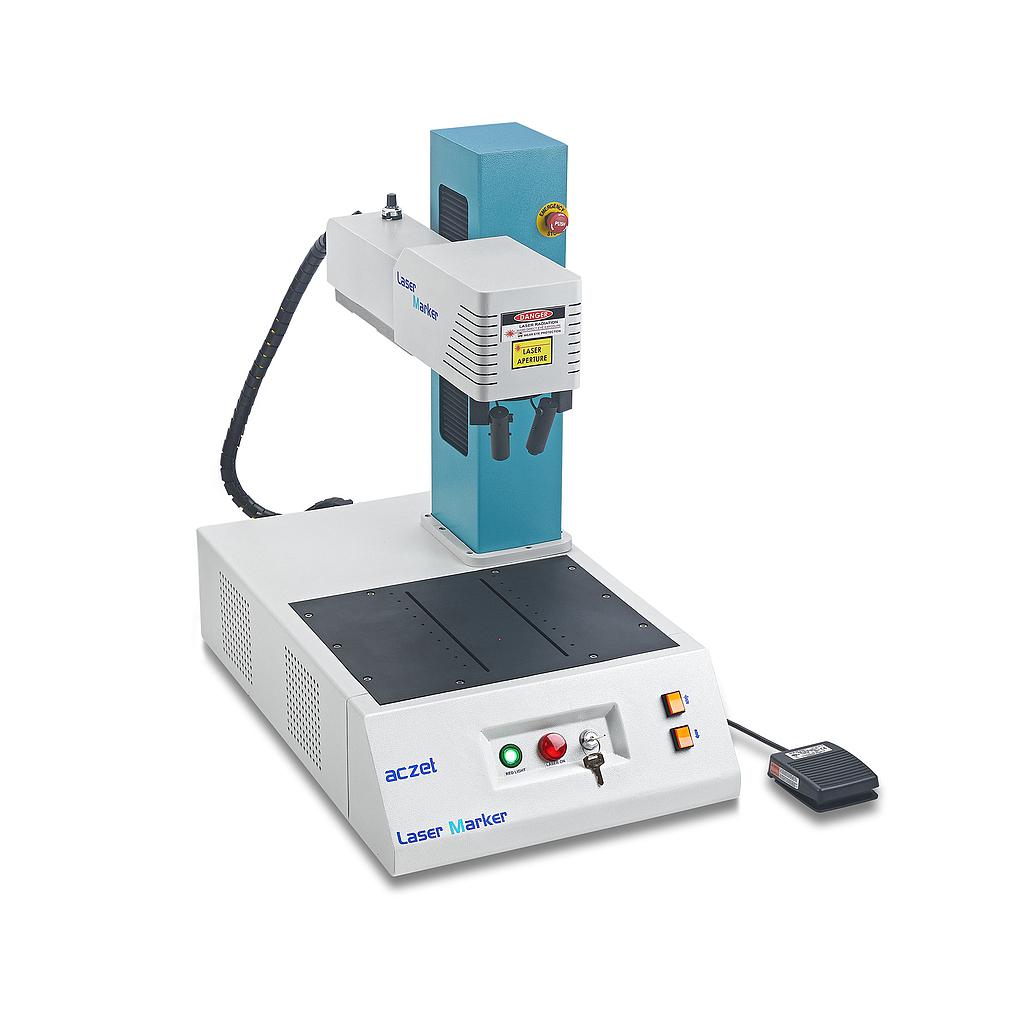

Aczet CFM 20F Fiber Laser Marking Machine (50 kW)

Laser Source: Pulsed Powerful Fiber Laser

Laser Power: 20 W

Pick Power: 50 kW

Laser wavelength: 1064 ± 1 nm

Beam Quality M2: < 1.2

Pulse Repetition Rate: 25 KHz

Marking Area (mm): 100 x 100

Working Life Of Laser: Greater than 20,000 hours

Marking Speed: < 7000 mm/sec

Laser Frequency: 20 - 100 kHz

Cooling System: Air Cooling

Axis: Auto Z Axis

Minimum Width: 0.03 mm

Minimum Character: 0.03 mm

Repeatability: 0.003 mm

Power Consumption (W): 800 W

Power Supply: 12V / 25/A DC V AC,60 Hz/1P/ 4A or 110V/ 50Hz/1P/8A

Dimension (LxWxH) mm: 680 x 460 x 640

Net Weight (Kg): 45 kg

Packing Dimension (LxWxH): 625 x 400 x 632
