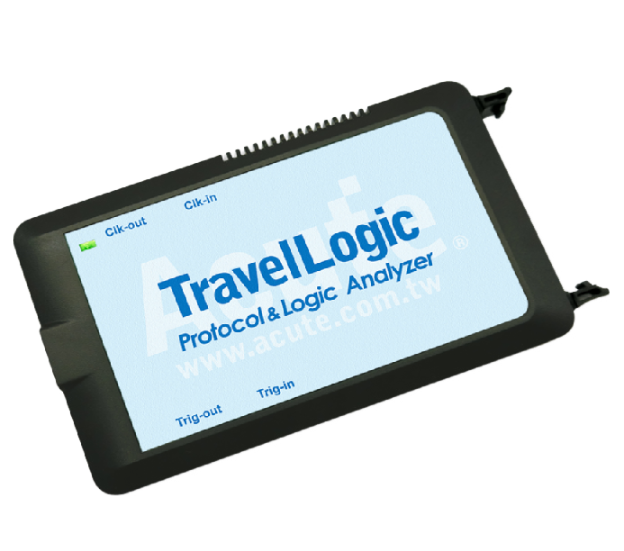

Acute TL4134E TravelLogic logic analyzer (34 channels, 250MHz; 4Gb)

Power Source: USB bus-power (+5V)

Static Power Consumption: 0.8W

Max Power Consumption: 3W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 2GHz

State Clock Rate (Synchronous，External Clock): 250MHz

Storage: Conventional Timing, Transitional Timing

Channels: 34

Total Memory: 4Gb

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

4GHz Timing [Available Chs] - Memory per Ch

2GHz Timing [Available Chs] - Memory per Ch: [8/7]-512Mb

1GHz Timing [Available Chs] - Memory per Ch: [16/14]-256Mb

500MHz Timing [Available Chs] - Memory per Ch: [32/28]-128Mb

250MHz Timing [Available Chs] - Memory per Ch: [32/32]-128Mb

Channel to channel skew: < 1ns

Input channels: N/A

Input impedance: 200KΩ//<7pF

Max. (Non-destructive): ±30V DC, 12Vpp AC

Input operation: ±10V

Input sensitivity: 0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp @250MHz

Threshold group: 4 (ch0~7, ch8~15 & clk0, ch16~23, ch24~31 & clk1)

Threshold range: ±5V

Threshold resolution: 50mV

Threshold accuracy: ±100mV + 5%*Vth

Trigger resolution: 500ps

Trigger types: Channel, Pattern, Single / Multi Level, Width, Time-out, Setup / Hold Timing Violation, External, Manual

Protocol Trigger:

BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SENT, SPI, UART (RS232), USB PD 3

Protocol Analyzer:

BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SPI, UART (RS232), USB PD 3
