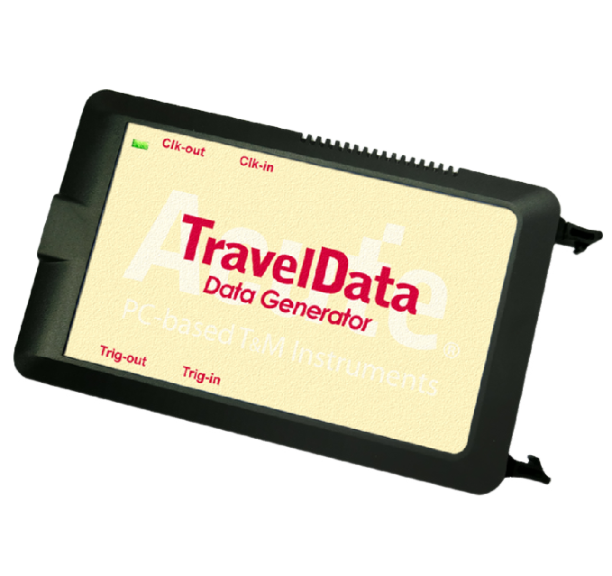

Acute TD3008E Digital pattern generator (8Ch; 100Mbps @Ch (Max.))

Power Source: USB 3.0

Static Power Dissipation: 2.5W

Max Power Dissipation: 4.5W

Hardware Interface: USB 3.0

Number of Output Chs: 8

Memory Pattern Depth/ch: 512Kb

Data Rate: 100Mbps @Ch (Max.)

Internal Clock System Range: 1Hz ~ 200MHz

Internal Clock System Resolution: 6 digits

External Clock System Range: <100MHz

Threshold: ±5V

Data Flow Control: Loop, Jump, Hold, Wait for Event

Clock / Channel Period Jitter: <200ps

Internal Event: N/A

External Event Ch: N/A

External Event Mode: N/A

External Event Threshold: N/A

Phase Tuning Delayed Time: N/A
