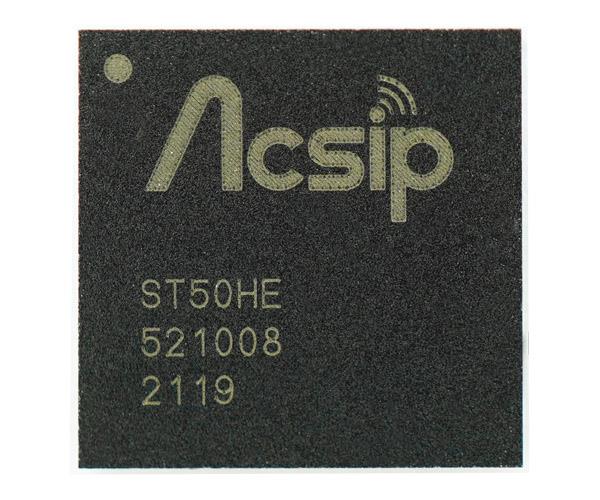

AcSiP ST50HE RF System on a Chip - SoC ST50H Module

Core: ARM Cortex M4

Width: 12 mm

Height: 1.2 mm

Length: 12 mm

Technology: Si

Sensitivity: - 136 dBm

Data RAM Size: 65 kB

Data RAM Type: RAM

Data Bus Width: 32 bit

Mounting Style: SMD/SMT

Number of I/Os: 38 I/O

Development Kit: EK-ST50HE

Maximum Data Rate: 0.013 kbps to 17.4 kbps, 0.6 kbps to 300 kbps

Moisture Sensitive: Yes

Operating Frequency: 863 MHz to 930 MHz

Program Memory Size: 256 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 6.8 mA

Operating Temperature Range: - 40 C to + 85 C

Supply Current Transmitting: 125 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
