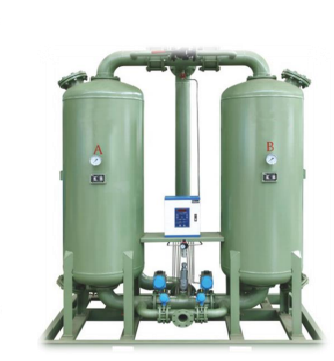

Acore DPR-20 Heated Regenerative Blower Purge Desiccant Dryer (23Nm3/phút)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Capacity (Nm3/min): 23
Connection (mm): DN80
Heater (kw): 7.5
Blower (kw): 3.3
Weight (kg): 1550
Dimension (mm) (L x W x H): 2000×1650×2500
Working pressure: 5-10 bar
Pressure Dew point: -40℃~-70℃
Switchover: 2-8h
Pressure drop: ≤ 0.2 bar
Temperature of inlet air: ≤45℃
Ambient Air temperature: ≤45℃
Oil content in inlet air: <0.1mg/m3
Control method: PLC
Desiccant: activated alumina and molecular sieve
Protection grade: IP65
Power supply: 380V, 50Hz, 3 Phase (or customized)
