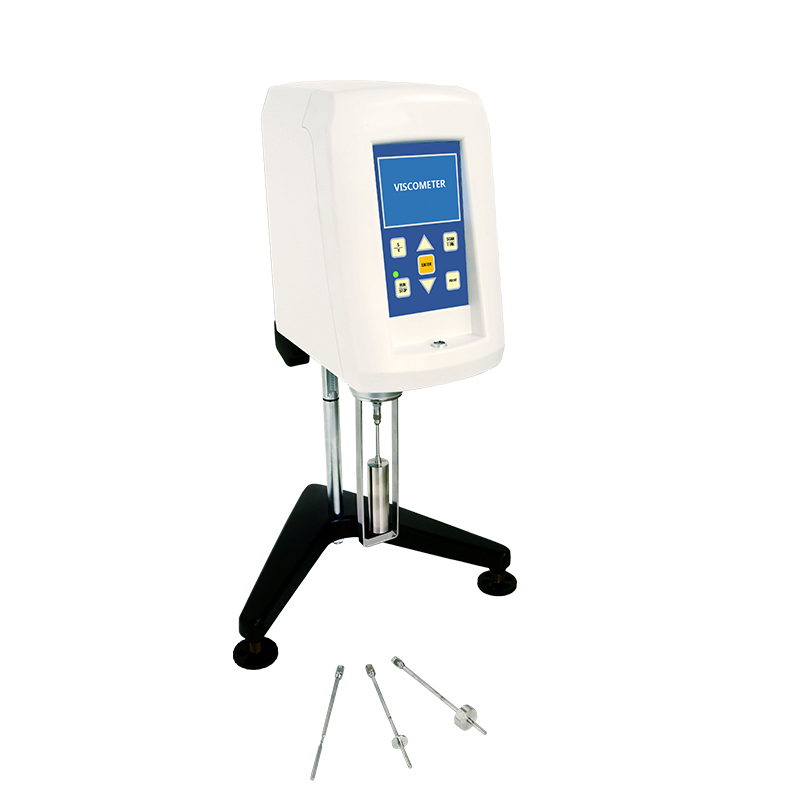

ACEY NDJ-5S Lab Digital Display Rotary Viscosity Meter (1 – 100.000 mPa·s)

Display Mode: liquid-crystal display

Speed (R/Min): 6 / 12 / 30 / 60

Rotor: 1#、2#、3#、4# The 0# rotor is optional, for measuring ultra low viscosity below 15

Measuring Range: 1～100,000

Sample Size Required For Each Measurement: 250 – 400ml

Viscosity Display Accuracy: 0.01mPa.S

Measurement Error : ±3% (Newtonian liquid)

Repetitive Error : ±1.5% （Newtonian liquid)

Sample Amount: 18ml （Each measurement required）

Timing Measurement Function: standard configuration

Temperature Measurement: standard configuration

Measurement Range Display: Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value

Constant Temperature Component: Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.)

Data Output Interface: standard configuration

Data Processing Software: option

Working Power Supply: 110V / 60Hz，220V / 50Hz

Outline Dimension: 300 × 300 × 450(mm)

1. The measurement data is directly displayed on the LCD screen without secondary calculation.

2. Using the latest international microcomputer drive technology and imported stepping motor, the speed is accurate, stable and reliable.

3. Adopt advanced switching power supply technology, wide voltage and frequency range, the fluctuation of power supply will not affect the measurement accuracy.

4. The horizontal display device is on the front of the viscometer, which is very convenient to adjust (new).

5. In all ranges, the display accuracy of the viscosity value is accurate to two decimal places, that is, 0.01mPa.S (new).

6. With the function of timing measurement, it is very practical for detecting non-Newtonian liquids (new).

7. Optional temperature probe to measure the temperature of the tested sample in real time.

8. With automatic scanning function, the instrument can automatically recommend the best combination of rotor and speed.

9. It can automatically display the maximum viscosity range that the selected combination can measure.

10. With a print interface, it can be directly connected to a micro printer to print various data (new).

11. Optional data processing software can record the changes in viscosity with time, rotation speed or rotor (shear rate) and temperature in real time, which provides a good understanding of the viscosity and rheological properties of non-Newtonian liquids Method means.
