ACEY ACEY-VO-3 Vacuum drying oven

Equipment structure:

Studio size: Height 300mm × Width 650mm × Depth 800mm × 3 layers (actual usable size)

Overall dimensions (reference): Height 1840mm × Width 1050mm × Depth 1100mm

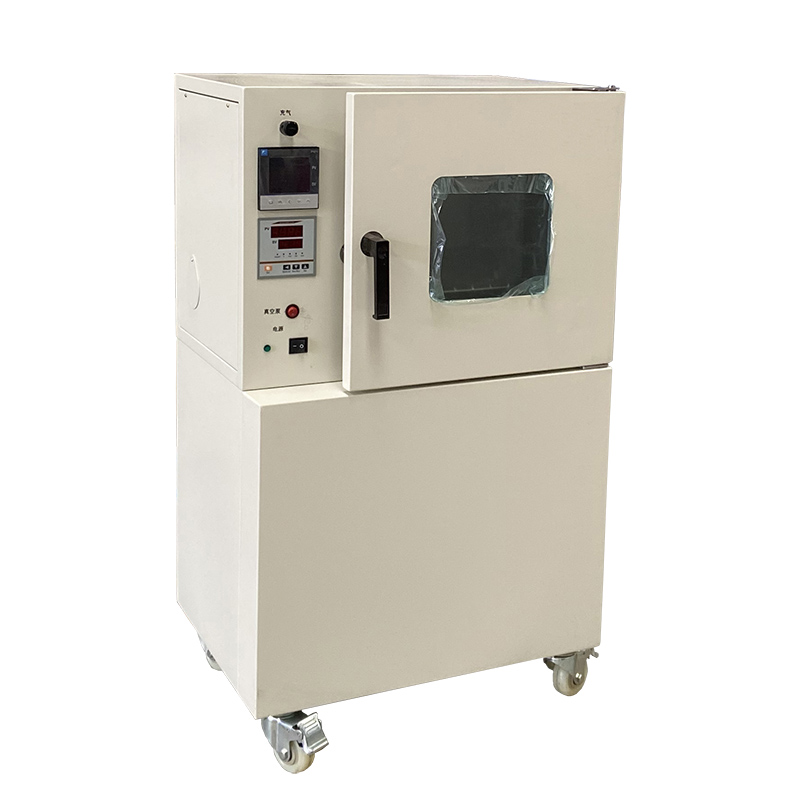

Single machine effect diagram: (for reference only)

Insulation layer thickness: 100mm

Heating method: External air heating

Heating tube description: There are 3 special heating chambers inside the furnace, independently supplied by 3 fans. The heating tubes are not in direct contact with the furnace wall. Even if the heating tube burns out or other problems occur, it will not affect the overall temperature uniformity inside the furnace. The special heating chamber design also makes the heating tubes easier to disassemble.

Air transportation system description: The heating box has excellent sealing performance. The installation of the stainless steel heating chamber enhances the sealing between the high-temperature silica gel and the box body, ensuring no communication with the atmosphere. The air transport pipes are evenly drag-welded. When the air duct is blocked, hot air leaks to the atmosphere to ensure heating safety. During normal use, nitrogen is filled during heating so that the baked materials can quickly reach the set process temperature.

Vacuum: -0.095MPa, pressure switch display (Brand: CKD, Japan, imported)

Vacuum retention rate: ≤5% for 24 hours

Temperature sensor: K-type thermocouple

Opening mode: Single door × 3, doors adopt double-layer explosion-proof laminated glass (without observation window)

Control box position: Top of the box

Operating temperature range: Room temperature ~ 120℃

Temperature control accuracy: 0.2℃

Temperature uniformity: 3℃ at 90℃ (no load)

Heating time: ≤60 minutes (no load)

Temperature control mode: Automatic control by temperature control instruments

Outer surface temperature of the box: ≤Room temperature +15℃

Body paint color: Computer light gray and white, color cards provided to support customized colors

External interface specifications:

Vacuum: DN40 pipe thread

Nitrogen: ¢12 air pipe

Compressed air: ¢8 air pipe

Equipment features configuration instructions:

Fully automatic type. Vacuum pumping, nitrogen filling, and deflation are automatically controlled by PLC and solenoid valves. The time can be freely set (vacuuming, pressure holding, nitrogen charging, and pressure holding time). The upper and lower limits of vacuum degree are configured by Panasonic vacuum pressure switch control equipment with 1 text display screen, 1 PLC programmable controller, and 3 vacuum detection digital display meters.

The 3 chambers work independently with independent heating and 3 sets of temperature control systems. They can work separately or simultaneously. The vacuum sealing is excellent. Each chamber can be vacuumized and filled independently without interfering with each other and is equipped with valve control for automatic or manual air replenishment.

Electrical capacity:

Rated power of single machine: 13.5KW (excluding vacuum pump)

Power supply: 380VAC ±10%, three-phase 5-wire system, 50HZ

Compressed air: ≥0.5MPa 2L/H, used to drive solenoid valves, not for consumption loss

Normal temperature nitrogen: ≥0.5MPa, purity: ≥99.99%(V/V)

Stainless steel inner container, each working room works independently, heating, vacuuming and inflation work in an automatic circulation type, each working period is set by the touch screen. The oven adopts PLC control system, touch screen operation, heating tube heating and heat dissipation.

The heating time is short and the pressure maintaining effect is good.
