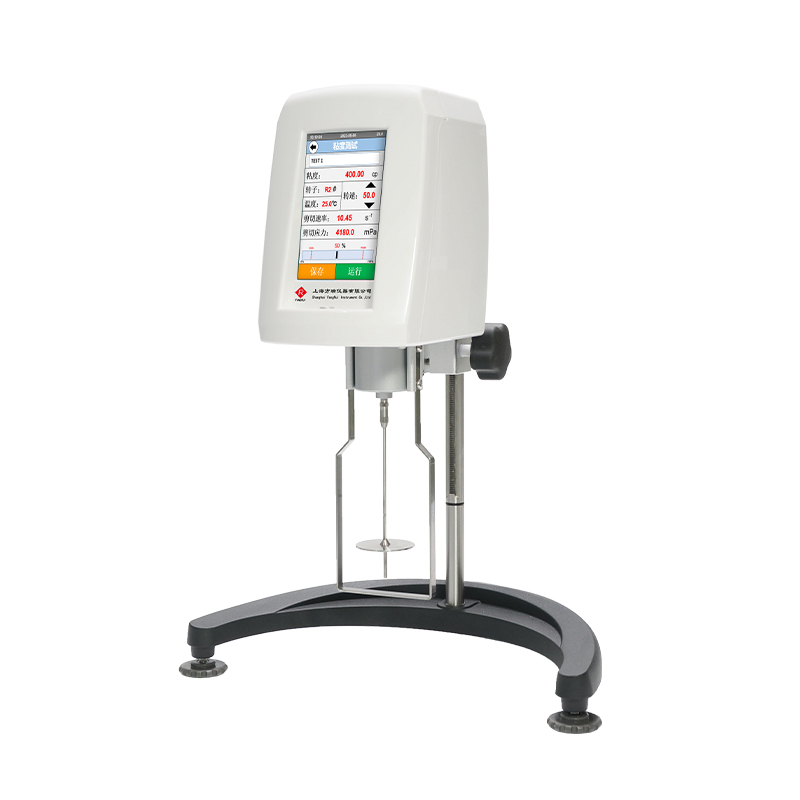

ACEY ACEY-VDT-2T Rotational Digital Viscometer

Control/Display:: 5-inch color touch screen

Speed (r/min):: 0.1 – 200 stepless speed regulation, 2000 selectable speeds

Measurement Range (mPa.s):: R2-R7: 800 - 320M

URL: 25.6 - 2K

No. 21: 200 - 4M

No. 27: 1K - 20M

No. 28: 2K - 40M

No. 29: 4K - 80M

(K = 1000; M = 1000000)

Rotors:: 2 – R7 (6 rotors, standard)

R1 (optional)

Enhanced ultra-low viscosity adapter ULR (optional)

Small sample adapter (No. 21, 27, 28, 29 rotors) (optional

Sample Volume:: Rotors R1-R7: 500ml

ULR: Range 25.6 - 2000, 21ml

No. 21 rotor: 7.8ml

No. 27 rotor: 11.3ml

No. 28 rotor: 12.6ml

No. 29 rotor: 11.5m

Measurement Range (mPa.s):: ±1% (Newtonian liquid)

Repeatability Error:: ±0.2% (Newtonian liquid)

Shear Stress/Shear Rate Display:: Standard

Timing Function: Standard Real-time

Viscosity Curve Display: Shear rate vs viscosity curve

Temperature vs viscosity curve

Time vs viscosity curve

Kinematic Viscosity: Requires input of sample density

Temperature Measurement Function: Standard with temperature probe interface (requires optional temperature probe)

Auto Scanning Function: Scans and recommends the optimal rotor and speed combination

Maximum Measurement Range: Automatically displays the measurable viscosity range for the selected rotor and speed combination

Custom Measurement Programs: Can save up to 30 sets (including rotor, speed, temperature, time, etc.)

Data Storage: Can save up to 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)

Printing: Data and curves can be printed (comes with a printing interface, printer optional)

Data Output Interface: USB: Can insert a USB drive to directly copy data

Thermostatic Components: Optional (includes various viscosity meter-specific thermostatic baths and cups)

Power Supply: Wide voltage range (110V / 60Hz or 220V / 50Hz)

Dimensions: 300*300 * 450 (mm)

1. Adopts ARM Technology with Built-in Linux System: The interface is simple and intuitive, allowing for quick and convenient viscosity testing through the creation of test programs and

data analysis.

2. Accurate Viscosity Measurements: Each range is automatically calibrated by a computer, ensuring high precision and minimal error.

3. Rich Display Information: In addition to viscosity (dynamic and kinematic viscosity), it also

displays temperature, shear rate, shear stress, the percentage of the measured value relative to

the full-scale value (with graphical display), range overflow alarms, automatic scanning, the

maximum measurement range under the current rotor-speed combination, date, time, and more. It can also display kinematic viscosity when the density is known, catering to different user

measurement needs.

4. Comprehensive Functions: Capable of timed measurements, user-defined 30 test programs, storage of 30 measurement data sets, real-time display of viscosity curves, and printing of data

and curves.

5. Front-Leveling Instrument: Allows for intuitive and easy leveling adjustments.

6. Stepless Speed Regulation:(1) RV1T Series: 0.3-100 RPM, with 998 speed settings. (2) RV2T Series: 0.1-200 RPM, with 2000 speed settings.

7. Displays Shear Rate vs. Viscosity Curves: Users can set the shear rate range, and real-time data is displayed on the computer. It can also display viscosity curves against time.

8. Standard USB Interface: Plug in a USB flash drive to directly copy data.

9. Optional Pt100 Temperature Probe: Offers a wide temperature range from -20°C to 300°C, with a temperature accuracy of 0.1°C.

10. Rich Optional Accessories: Includes dedicated viscosity meter thermostatic bath, thermostatic

cup, printer, standard viscosity samples (standard silicone oil), and more.

11. Bilingual Operating System (Chinese and English): Pre-configured before delivery.
