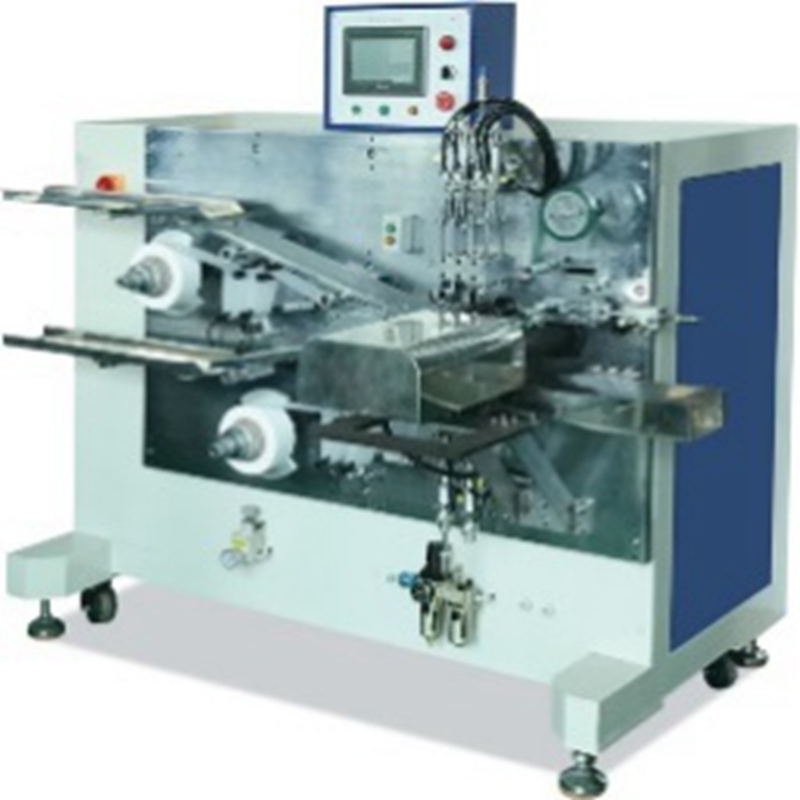

ACEY ACEY-SWM-C Semi-automatic Cylindrical Cell 18650 Battery Electrode Winding Machine

Needle diameter: Ф3mm, Ф4mm, Ф5mm (can be customized according to customer requirements)

Length of positive and negative plates: 90mm~650mm

Width of positive and negative plates: 28mm~58mm

Diaphragm width: 30mm~60mm

Tape width: 8mm~16mm

Winding accuracy: ≤±0.3mm (alignment error between diaphragm and positive and negative plates)

Speed: 5~7 pcs/min

Air source: 0.5~0.7 MPa

Power source: AC220V 50HZ

Power: 1.0KW

Equipment size: 1600mm × 1300mm × 1500mm

1. Suitable for semi-automatic dedicated production of cylindrical lithium-ion batteries

2. Automatic diaphragm release, automatic winding, automatic tape termination and automatic unloading;

3. Diaphragm is supplied with constant tension, and the cell tension is consistent;

4. The pole piece guide plate can easily adjust the width, adapt to a 5. Using man-machine interface to control the machine, the operation is simple and intuitive;

6. Automatically alarm and display the fault location when abnormality occurs, which is convenient for processing;

7. The operation is easy and simple to learn, and productivity can be formed as soon as possible.
