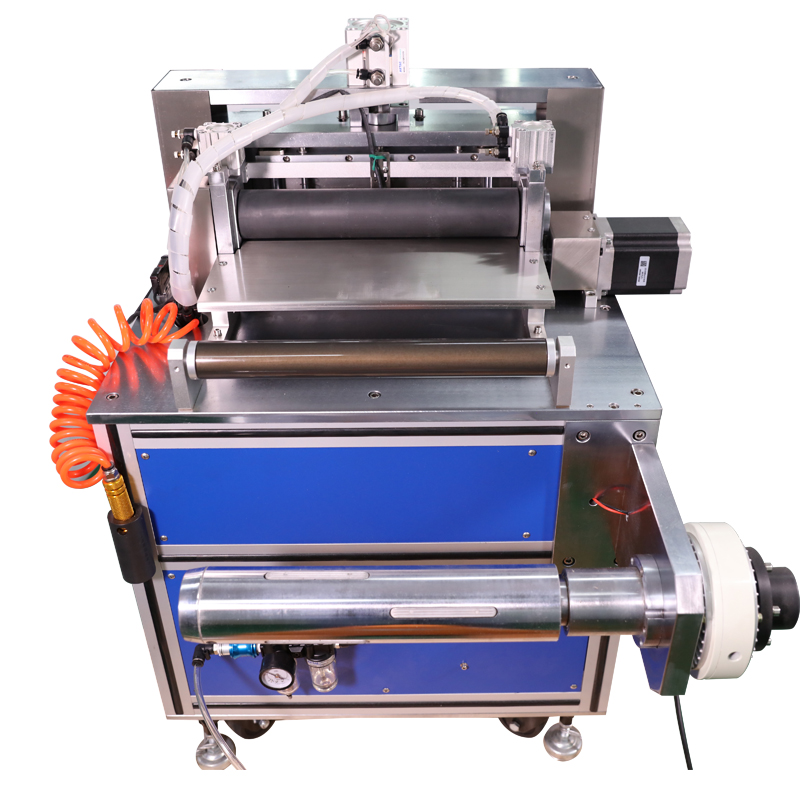

ACEY ACEY-SM300 Semi-Automatic Cylinder Battery Electrode Slitting Machine For Laboratory Research

Cutting knife type: Upper and lower round knife cut

Cutter width: 20–300 mm

Distribution of knife interval: 56±0.1 mm, 56±0.1 mm, 56±0.1 mm, 58±0.1 mm, 58±0.1 mm, 58±0.1 mm

Cuttable thickness: 80–300 μm battery pole piece

Knife bite amount: Adjustable by hand wheel 0.2–0.4 mm

Cutter diameter: 100 mm

Cutter material: Ultra-fine alloy steel

Width adjustment: Spacer adjustment

Slitting speed: < 2 m/min, adjustable knob

Power supply: AC 220V / 50Hz

Power: 0.5 kW

Dimensions: L840 × W600 × H310 mm

1. Adjustable guide device for feeding positioning.

2. Using electric rolling and slitting method.

3. Upper and lower blades are at the same speed, synchronous transmission.

4. The hob is equipped with a plexiglass protection device for safe operation.

5. Open-type hob fixing method is convenient for hob disassembly.

6. High cutting precision and reliable work.
