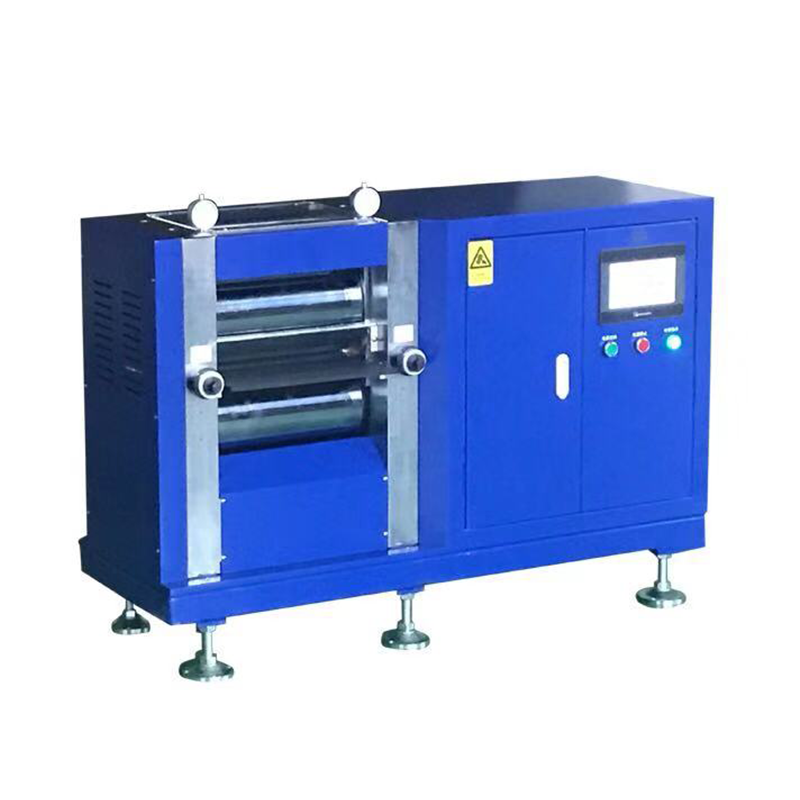

ACEY ACEY-RW300 Adjustable Electric Horizontal Rolling Press Machine For Battery Electrode Calendering

Rolling force: Max.25t

Mechanical speed: Max.6m/min

Work roll diameter: Ф200mm

Material: 9Cr3Mo

Surface hardness: HRC65~68, internal hardness HRC60~62, roughness Ra≤0.4, round runout better than ±2μm

Roller surface width: 330mm

Press down type: Hydraulic

Rolling accuracy: ±1.5μm

Rolling mill opening: 2mm

Reducer and sub-gear box: Combined

Rolling mill motor: AC variable frequency motor

The single reduction of the lithium electrode sheet is 20%~30%; if thinner rolling is required, multiple rolling passes are needed (5μm/time)

Using environment: Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference

Overall installation dimensions: L1400mm × W500mm × H1300mm

Voltage: 220V 2KW

Gas source: 0.5-0.8MPa compressed air

Weight: About 600KG

1. Integral gantry frame, CNC precision machining to ensure high precision and high stability.

2. The roll is made of imported cold-rolled chromium-molybdenum material, and the surface is chromium-plated and cryogenically treated by heat treatment, with high internal and external hardness and good wear resistance.

3. The hydraulic system imported from the United States automatically controls the rolling pressure.

4. Patent design hydraulic balance rolling mechanism, stable pressure 5. Slanted block type roll gap adjustment device, display adjustment.
