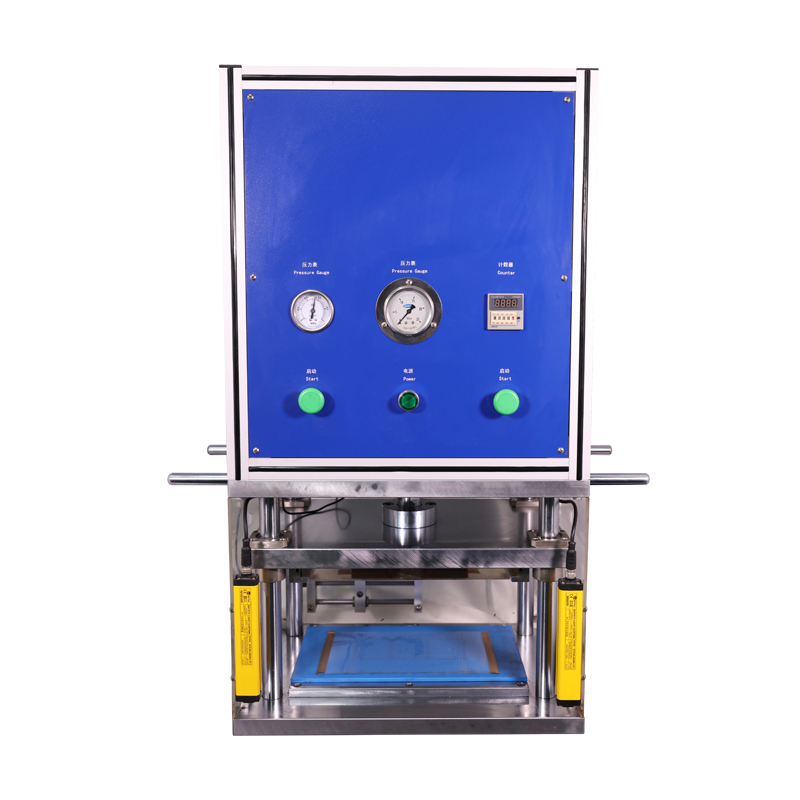

ACEY ACEY-PDC-1 Pouch Battery Electrode Cutting Pneumatic Pole Piece Die Cut Machine

Vertical burr: ≤12μm, horizontal burr: ≤20μm

Long tool life, normal use ≥30,000 times

Punching size: L85mm × W65mm (can be customized according to customer requirements)

Punching accuracy: ±0.1mm

Punching pressure: Max. 1T (0.5MPa compressed air), recommended pressure for battery electrode punching is 500Kg

Die cutting stroke: 35mm

Compressed air: 0.5MPa compressed air, if installed in a glove box, the gas used is the same as the glove box system

Dimensions: L350mm × W230mm × H300mm

Equipment weight: 32kg

1. Slice-type pole piece feeding, the knife template realizes die cutting, can be used in the glove box.

2. It is convenient and quick to change the knife mold.

3. Long tool life, normal use ≥ 30,000 times.

4. There are no quality defects such as burrs, powder falling, and indentation.

5. Using four guide pillar structure, sliding up and down smoothly and high precision.

6. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.

7. Easy to operate, safe and reliable, small size.
