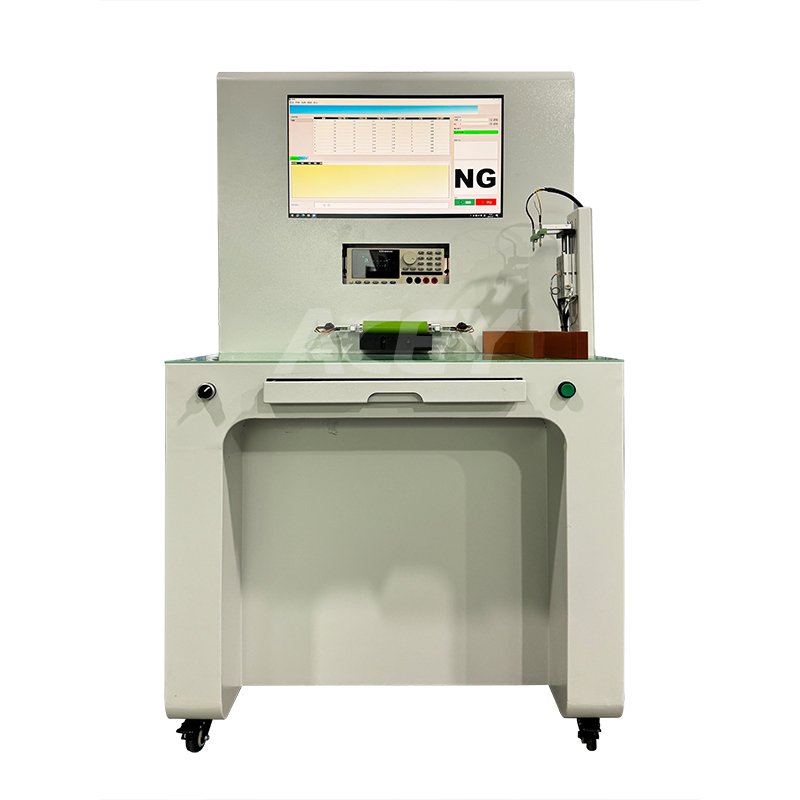

ACEY ACEY-MS01 Manual Lithium Battery Cell OCV IR Sorting Machine for Prismatic and Cylindrical Cell

Equipment Dimensions: L800mm × W750mm × H1423mm

Equipment Weight: Approx. 100kg

Equipment Color: Computer White (can be adjusted upon request)

Total Power: ≤1.5KW

Ambient Temperature: 5ºC-35ºC

Humidity: 20%-90%

Air Pressure: 0.5～0.6 MPa

Power Supply Voltage: 220V-50Hz/60Hz

Weight-bearing Capacity: ≤200kg/m²

Grounding Type: Direct grounding

Site Requirements: Free from pollution and strong electromagnetic interference

Installation Environment: Flat, vibration-free, and shock-free

Equipment Noise: ≤80dB

Features

Applicable battery types: 280Ah prismatic lithium batteries and cylindrical lithium batteries;

Compatible module dimensions: Prismatic: Length 80-300mm, Thickness 10-100mm, Height 80-300mm; Cylindrical: Diameter 21-50mm, Length 65-200mm

Equipment control method: PC control;

Dual-hand start for enhanced safety;

10 channel settings available for better cost-effectiveness.
