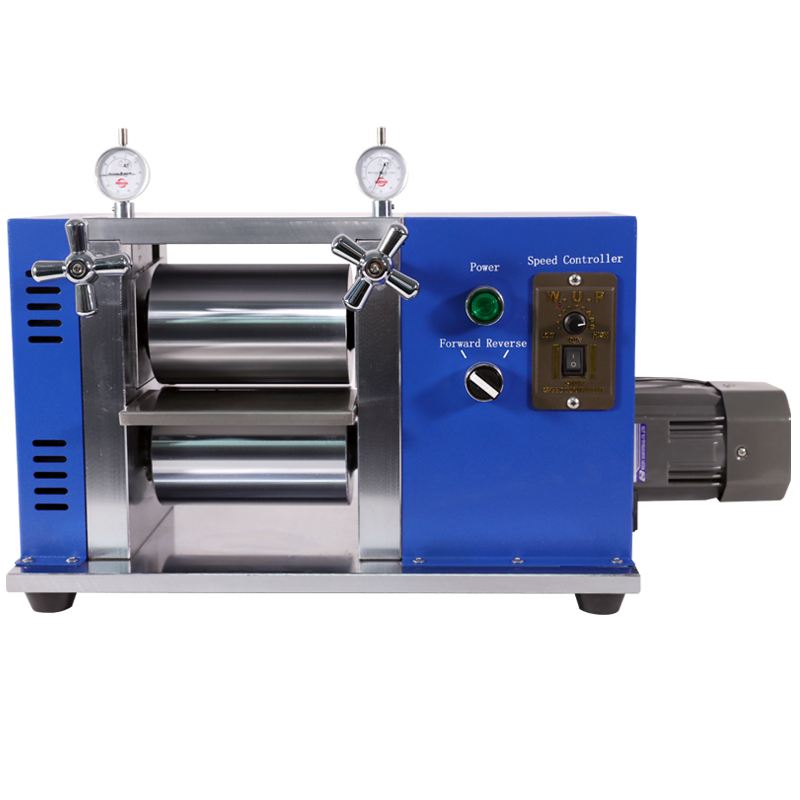

ACEY ACEY-MRP100L Manual Rolling Press Machine For Lithium Battery Electrode Sheet Calendering (Φ96mm × 100mm)

Roller size: Diameter Φ96mm × 100mm

Roller cylindricity: ≤±2um

Roller hardness: HRC62

Roller finish: Above 0.4

Rolling thickness: 0～2mm, adjustable gap

Roll placement: Vertical placement

Operation method: Manual

Feeding speed: 0～40mm/s, depending on hand crank speed

Dimensions: L355mm × W245mm × H355mm

Equipment weight: 50KG

1. The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.

2. Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.

3. High rolling precision, roller cylindricity≤±2um.

4. Vertical design, convenient for feeding and rolling of strip material.

5. Adopt gear meshing rotation to realize the roller pressing.

6. The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.

7. Small size, easy operation, flexible and quick to use.
