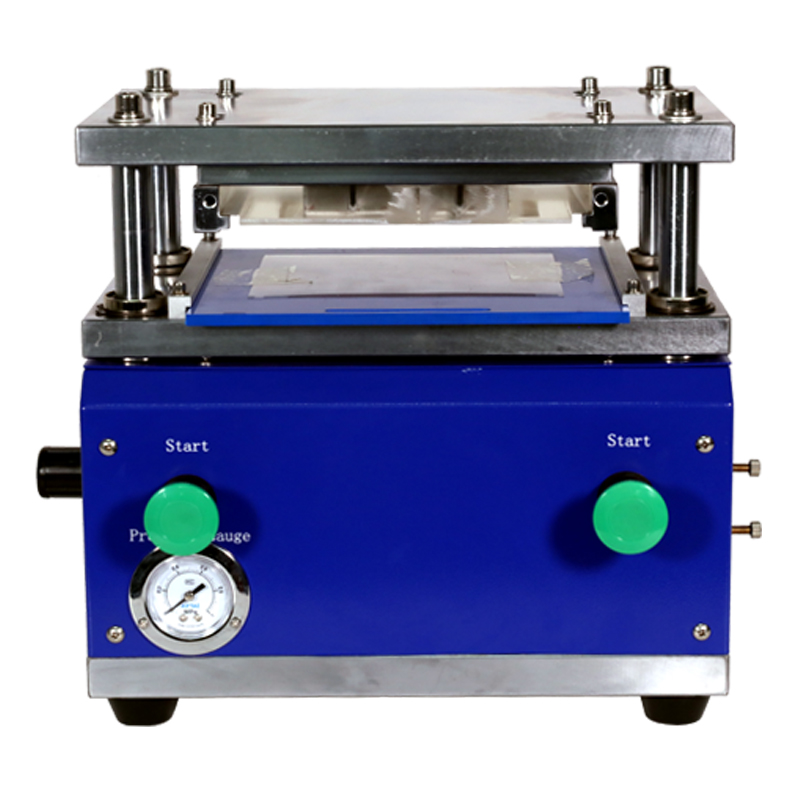

ACEY ACEY-HDC-1 Small Hydraulic Die Cutting Machine For Pouch Cell Electrode Sheet Cutting

Punching size: 120×100mm (can be customized according to customer requirements)

Punching accuracy: ±0.1mm

Pressure: 8T

Die cutting stroke: 35mm

Structural material: High-strength chromium steel, surface will never rust after environmental protection plating and spraying

Dimensions: 223mm × 170mm × 325mm

Weight: 25kg

1. Small size, easy to operate, can be placed in a glove box for operation.

2. Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.

3. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.

4. Using hydraulic drive, the pressure can reach 8T, die cutting without vibration, no leakage.

5. It is convenient and quick to change the knife mold.

6. Long tool life, normal use ≥ 30,000 times.

7.There are no quality defects such as burrs, powder falling, and indentation.

8. Using four guide pillar structure, sliding up and down smoothly and high precision。

9. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
