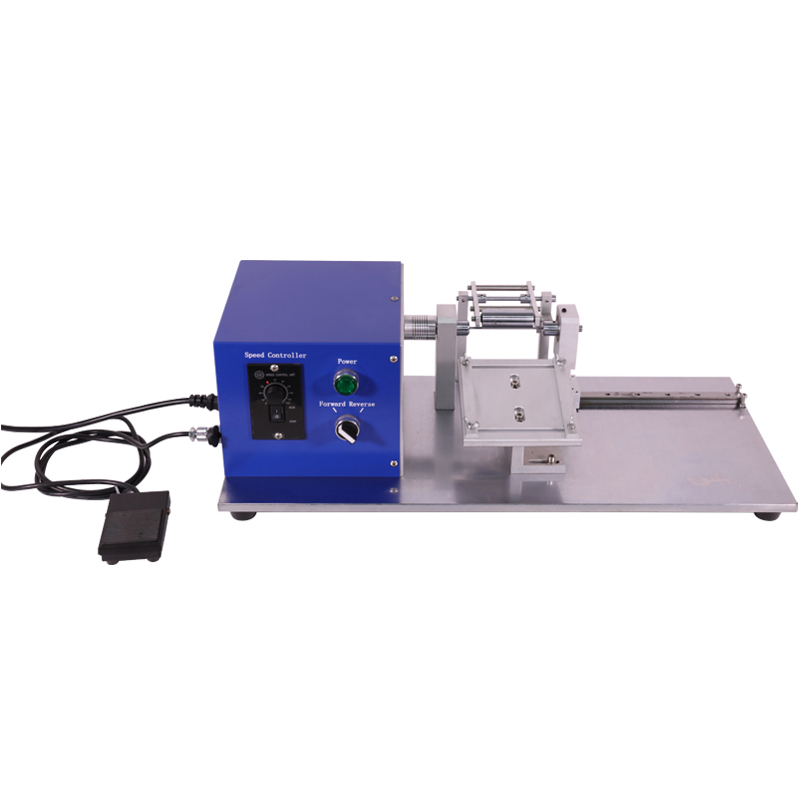

ACEY ACEY-GM-1 Semi-Auto Cylindrical Battery Case Grooving Machine

Roll groove depth: 1.2～2.0mm (adjustable)

Rolling groove width: 1.1～1.5mm (according to the thickness of the hob)

Processing accuracy: ±0.1mm

Hob life: > 1 million times

Capacity: Semi-automatic 400 EA/H

Configuration power supply: 220V/50Hz

Power: 140W

Compressed air: 0.5MPa～0.7MPa

Suitable for various steel shell cylindrical battery roll grooves such as 18650, 26650, 21700

Suitable for aluminum shell capacitor rolling groove within Φ30

Dimensions: 820mm × 255mm × 510mm

Weight: 80kg

1. The rolling groove size is adjustable, with high precision and stable size.

2. It can process various rolling grooves of cylindrical batteries.

3. The machine is small in size, exquisite and beautiful in appearance, and easy to operate.
