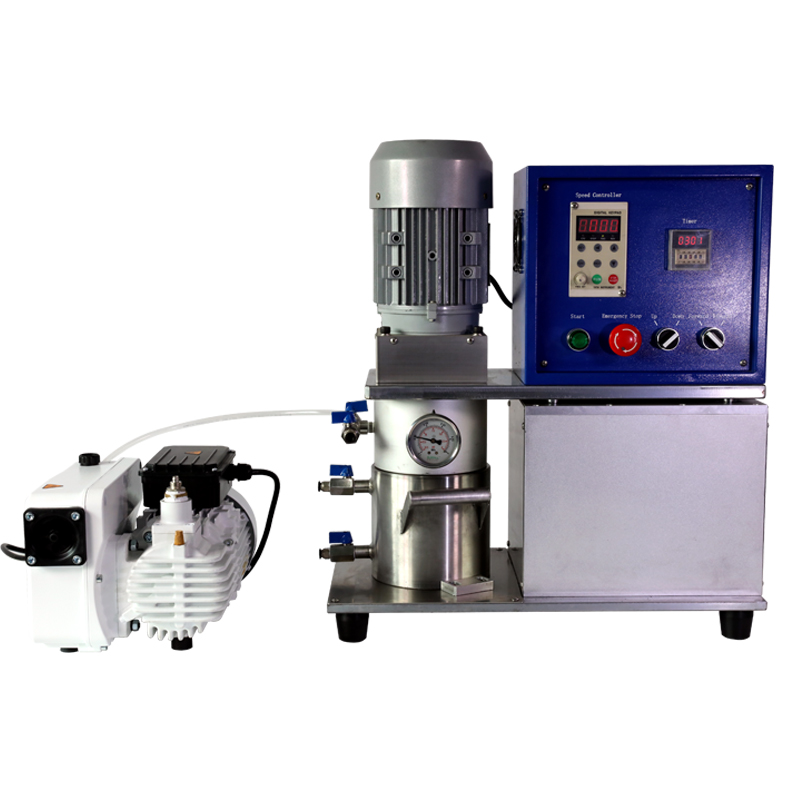

ACEY ACEY-EVM-1L Electric Helical Blade Vacuum Mixer (0-1400 rpm)

Power supply voltage: AC220V

Rated power: 0.7 kW

Stirring speed: 0–1400 rpm (frequency converter speed regulation)

Vacuum: -98 kPa (without vacuum pump)

Effective volume: 150–250 ml stainless steel vacuum mixing tank, customizable

Barrel opening/closing: cylinder drives the upper cover to rise

Overall dimensions (H×L×W): 705 × 605 × 305 mm

Timing function: 0–99 h adjustable

Auto stop: stops automatically and maintains vacuum state

Lid configuration: equipped with vacuum gauge, vacuum port, etc.

Weight: approx. 90 kg

1. Adopting industry-leading soft sealing technology, can maintain -0.098Mpa state for more than 24 hours.

2. Adopting precision guide post support, the cylinder automatically pushes the barrel to open and close, humanized design, precise and efficient.

3. 1L double-layer stainless steel container, the barrel body is made of high-quality 304 stainless steel, after finishing lathe, it is polished by a precision automatic polishing machine to ensure high precision.

4. The variable speed range is 0～1400 rpm, and the time, speed and rotation direction are set by the programmable controller according to the application program.

5. The stirring motor adopts gearbox frequency conversion adjustment, and different speed and torque can be selected according to different processes and different viscosities.

6. The double-dispersion blade design makes the material toss up and down and around, so that the slurry can be mixed quickly and evenly.

7. Small size, can save space.

8. Exquisite appearance, three-dimensional geometric design, simple and beautiful.
