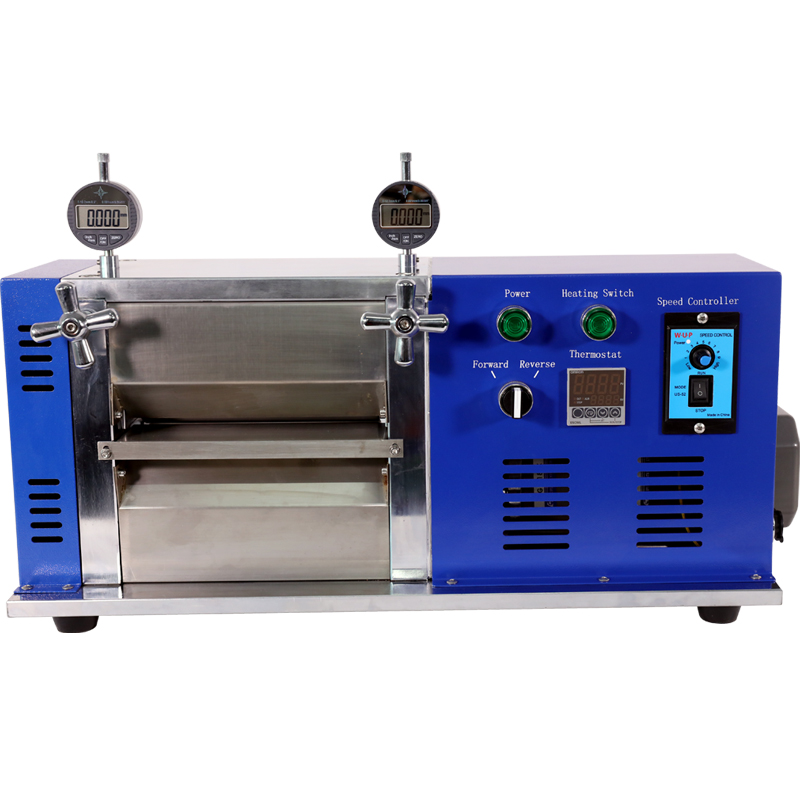

ACEY ACEY-ERP100L Lab Vertical Electric Roll Press Machine For 18650 Battery Electrode Calendering (Φ96mm × 200mm)

Roller size: Diameter Φ96mm × 200mm

Roller cylindricity: ≤±2um

Roller hardness: HRC62

Roller finish: Above 0.4

Rolling thickness: 0～2mm, adjustable gap

Roll placement: Vertical placement

Tablet thickness: Speed can be adjusted

Power source: AC220V/50Hz, power 120W

Feeding speed: 0～40mm/s

Dimensions: L385mm × W240mm × H355mm

Equipment weight: 65KG

1. The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.

2. Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.

3. High rolling precision, roller cylindricity≤±2um.

4. Vertical design, convenient for feeding and rolling of strip material.

5. Adopt gear meshing rotation to realize the roller pressing.
