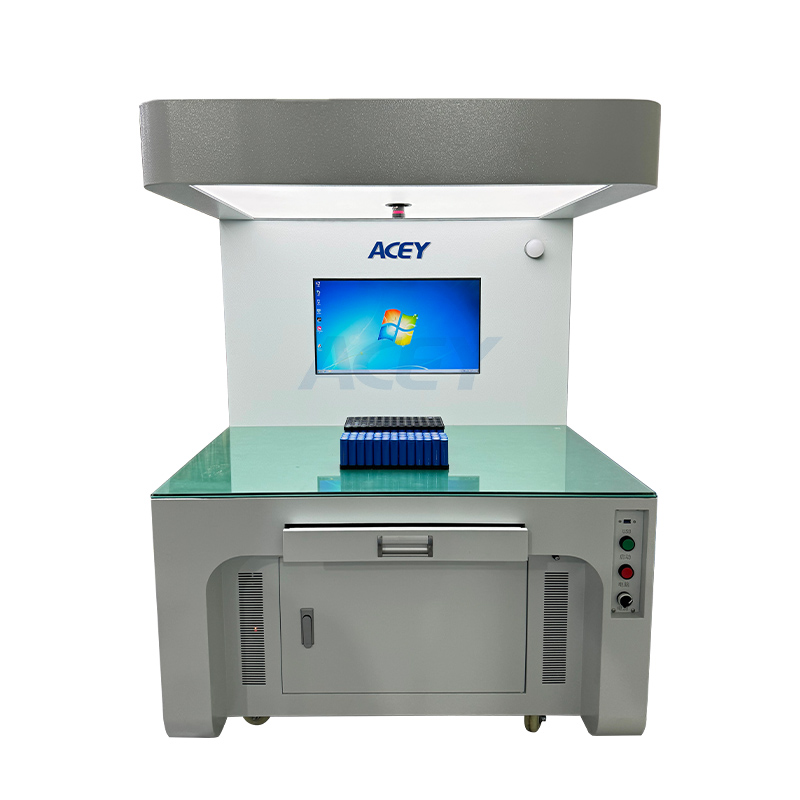

ACEY ACEY-CCD01 Cylindrical Battery Positive And Negative Visual Inspection Machine

Equipment Power: 600W, AC220V input, 50Hz

NG Position Function: Can confirm the positive and negative electrodes of the battery pack before spot welding and prevent defects caused by incorrect electrode positions

Adaptable Cell Range: Cylindrical cells 14430/14500/18500/18650/21700/26650/32650/32700, etc.

Detection Range: 400 × 300mm (customizable)

Template Function: After the sample (template) is saved, it can be rotated 360° for position detection

Operation Mode: After parameter setting, detection mode can be started with one key

Function Setting: Simple setting, easy to understand and operate, no on-site training required

Industrial Computer: Supports sudden power failure protection, database operation remains normal

Local Database: Mainly supports positive and negative polarity data for cylindrical cells, other categories are not compatible

Detection Speed: 100pcs cells / 1.5s

Detection Accuracy: 100% when the cell is not deformed or rusted

Parameter Storage: Supports mass storage of product parameters and direct detection by recalling parameters

ACEY-CCD01 CCD tester is designed for cylindrical battery cells and uses a camera to collect positive and negative electrode data. It compares the number and position information of the positive and negative electrodes with the sample, quickly analyzes the result (NG or OK), and marks the position of NG to confirm the positive and negative electrodes of the battery pack before spot welding, in order to prevent defects caused by incorrect positive and negative electrode positions.
