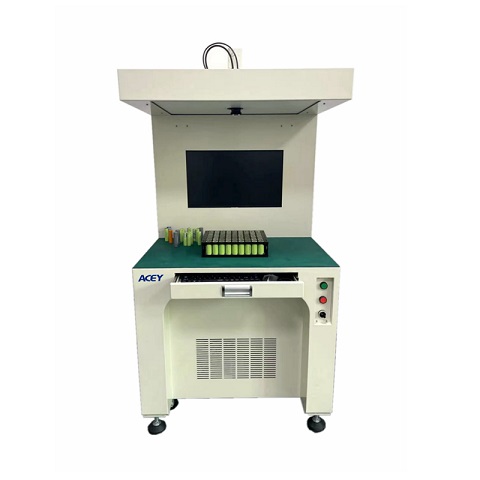

ACEY ACEY CCD-5038 Cylindrical Battery Pack Positive and Negative CCD Tester

Applicable Battery Specifications: Suitable for polarity detection of various finished battery cells

Detection Range: 500 × 380 mm (customizable)

Efficiency: 50–80 PPM

Operating Environment: Temperature range 26℃±5℃, humidity ≤82%, clean environment with no strong electromagnetic interference

Maximum Equipment Dimensions: L1000 × W650 × H1900 mm

Total Weight: ≈55kg

Equipment Power Supply: AC220V±10%, 50Hz; Power 300W

Description

ACEY CCD-5038 is a multi-purpose CCD visual inspection system using machine vision technology based on CCD industrial camera. It is suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks. CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.

Working Process

1) Through the CCD computer system, set the measurement mode and accuracy parameter range, adjust the parameters, and the equipment starts to monitor and enter the working state.

2) Action process: manual loading of the whole box of batteries → start CCD detection button → CCD system analysis → → CCD system discrimination (OK/NG) → material receiving personnel to receive materials

3) The equipment is equipped with sound and light alarm, fault alarm, etc. Operating parameters can be freely set according to the actual requirements of customers.
