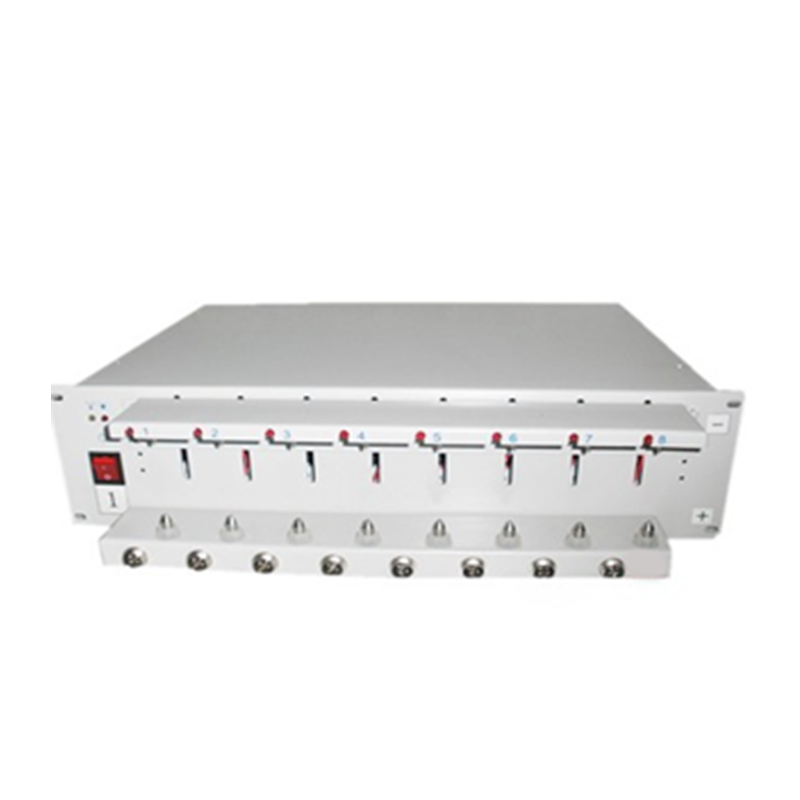

ACEY ACEY-BT0503 5V3A Eight-Channel Battery Analyzer System Cylindrical Battery Pack Testing Machine

Number of Channels: 8 channels/set

Communication Method: RS232

Input Power Supply: AC220V±10%, 50Hz

Input Power: 150W

Current Control Range: 0.05A–3A

Current Measurement Range: 0.001A–3A

Current Measurement Accuracy: ±(0.1%FS + 0.1%RD)

Voltage Control Range: Constant current charging 0.01V–5V, constant voltage charging 3V–5V; discharge 0V–5V

Voltage Measurement Range: 0.01V–5V

Voltage Measurement Accuracy: ±(0.1%FS + 0.1%RD)

Step Time Setting Range: 1–720 min

Time Measurement Resolution: 1S

Continuous Cycle Range: 1–999 times

Data Recording Conditions: △t, △V, △I

Working Temperature: 10℃–40℃ (20℃–30℃ recommended)

ACEY-BT0503 is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries.This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
