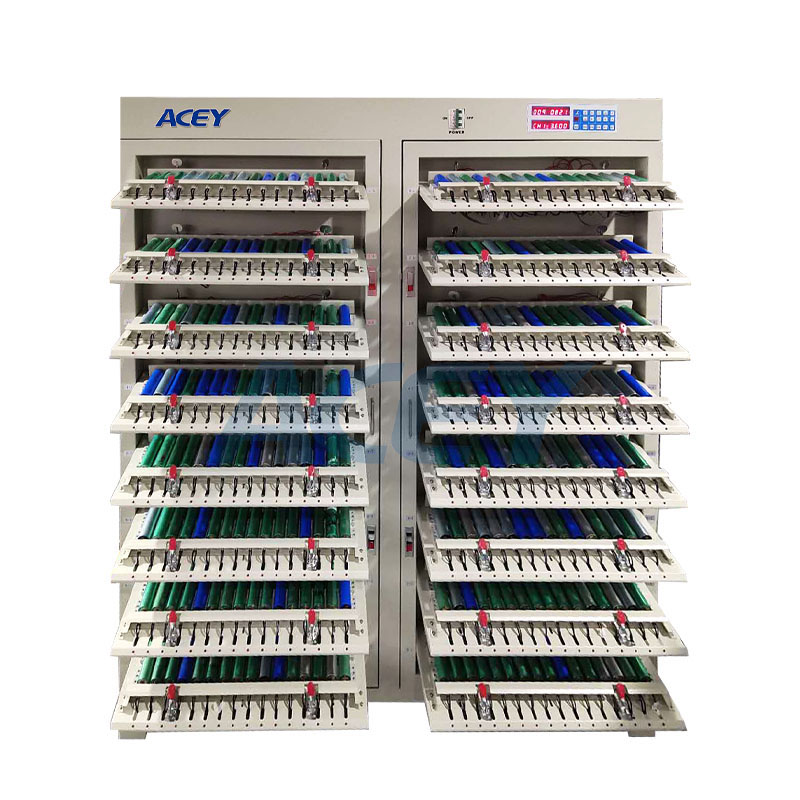

ACEY ACEY-BCT506-512H Cylindrical Lithium Ion Cell Grading Testing Machine (5V 6A 512 Channels)

Number of Device Channels: 512 Channels

Size (W × D × H): 1620 × 859.1 × 1840mm

Clamp Form: Cylindrical four-wire fixture

Device Color: Dark grey

Clamp Center Distance: 40mm / 35mm

Supported Battery Height: Adjustable within 10-100mm range

Working Power Supply: Three-phase five-wire system AC380V ±10%, 50Hz

Working Power Dissipation: ≤27KW

Working Environment: Temperature 0-40℃, relative humidity ≤80%

Heat Dissipation Method: Natural air intake and upward exhaust

Voltage Testing Range: 0-5V, 1mV resolution

Battery Voltage Range: Charge 0-4.5V / Discharge 4.5-2V

Constant Voltage Range: 2.5V-4.5V

Voltage Accuracy: ±(1‰ reading +1‰ full scale)

Current Range: 60mA-6A, Resolution: 1mA

Current Accuracy: ±(1‰ reading +1‰ full scale)

Control Mode: Computer-connected equipment operation, whole machine control

Communication Mode: RS485, baud rate 57,600

Process Setting: Maximum 32 work steps and 256 cycles

Charging Mode: Constant current, constant voltage

Charging Cutoff Condition: Voltage, current, time, capacity

Discharge Mode: Constant current

Discharge Cut-off Condition: Voltage, time, capacity

Protection Function: Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc.

Time Range: 0-30,000 minutes

Time Accuracy: ≤±1‰

Sampling Inspection Period: ≤8s

Minimum Data Recording Frequency: ≤8s

Battery Grading: By capacity, time, discharge platform, etc.

Data Processing: Data, graphs, and loop diagrams

System Features

Single point independence, each battery has its own independent constant current and constant voltage source, stable and impact-free.

Equipment accuracy is 0.1%, with high stability.

Powerful software and user-friendly human-machine interface.

Four-wire test interface ensures high measurement accuracy.

Modular design concept, easy to maintain.
