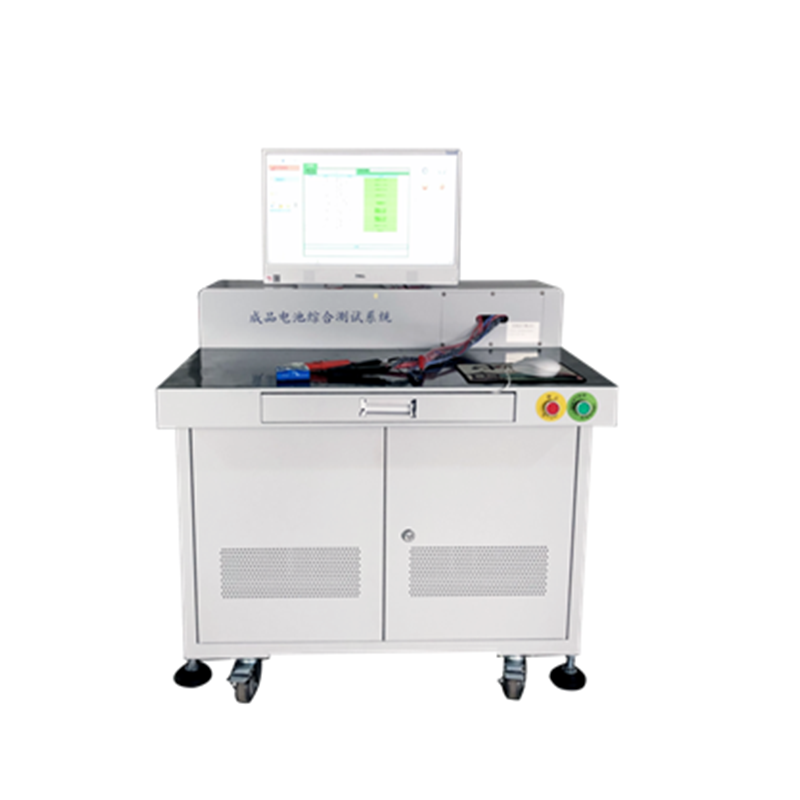

ACEY ACEY-BCT100 18650 Battery Pack Comprehensive Tester Multi Functional Tester Integrated Testing Machine

Open Circuit Voltage Test: 7.2V–85V

Peak Current: 100A

Functions: Charging voltage test

Charging Current Test: Supported

Internal Resistance Test: Supported

Discharge Current Test: Supported

Load Voltage Test: Supported

Overcurrent Test: Supported

Overcurrent Recovery Voltage Test: Supported

Reserved Time Setting: Supported

Discharge Time and Current Setting: Supported

Overcurrent Protection Delay Time Setting: Supported

Overcurrent Step Current Setting: Supported

Features

1. The continuous output power of the equipment is 2KW.

2. The continuous load power of the equipment is 12KW.

3. The maximum test voltage is 100V. (can be customized according to requirements)

4. Maximum charging current (20A), discharge current (120A). (can be customized according to requirements)

5. Programmable control of test items.

6. Friendly human-computer interface.

7. Support one upper computer software to control 8 devices.

8. The device supports serial port, network and upper computer communication.

9. Test records can be saved to database (SQL) or file (Excel).

10. Support the export and import function of test project.

11. The equipment supports the same port and split port batteries for charging and discharging.
