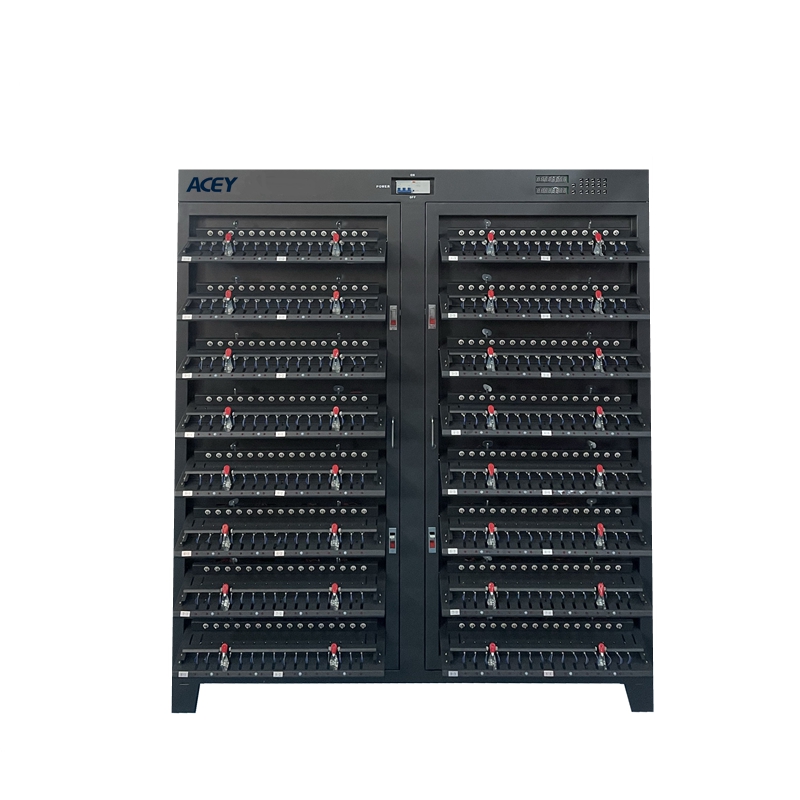

ACEY ACEY-BCT Lithium Ion Battery Cell Capacity Grading Machine

Working Power: Three-phase five-wire system AC380V±10%, 50Hz

Working Environment: Temperature 0–40°C, relative humidity ≤80%

Heat Dissipation Method: Natural air intake and upward exhaust

Channel Parameters:

Voltage Measuring Range: 0–5V, 1mV resolution

Battery Voltage Range: Charge 0–4.5V; Discharge 4.5–2V

Constant Voltage Range: 2.5V–4.5V

Voltage Accuracy: ±(1‰ reading + 1‰ full scale)

Current Accuracy: ±(1‰ reading + 1‰ full scale)

Software Functions:

Control Mode: Computer-connected equipment operation, FCL control

Communication Mode: RS485, baud rate 57,600

Process Setting: Maximum 32 working steps and 256 cycles

Charging Mode: Constant current, constant voltage

Charging Cut-off Conditions: Voltage, current, time, capacity

Discharge Mode: Constant current

Discharge Cut-off Conditions: Voltage, time, capacity

Protection Functions: Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc.

Time Range: Adjustable from 0 to 30,000 minutes

Time Accuracy: ≤±1‰

Sampling Inspection Period: ≤8S

Minimum Data Recording Frequency: ≤8S

Battery Sorting: By capacity, time, discharge platform, etc.

Data Processing: Data, graphs, and cycle diagrams

Features

Each channel can be started and stopped at a single point, and the response speed is fast.

The operation is simple, convenient and intuitive

Modular design, easy to maintain.

The digital current and voltage automatic calibration function

Using network connection and SQL database

The hardware technology is advanced, stable and durable.
