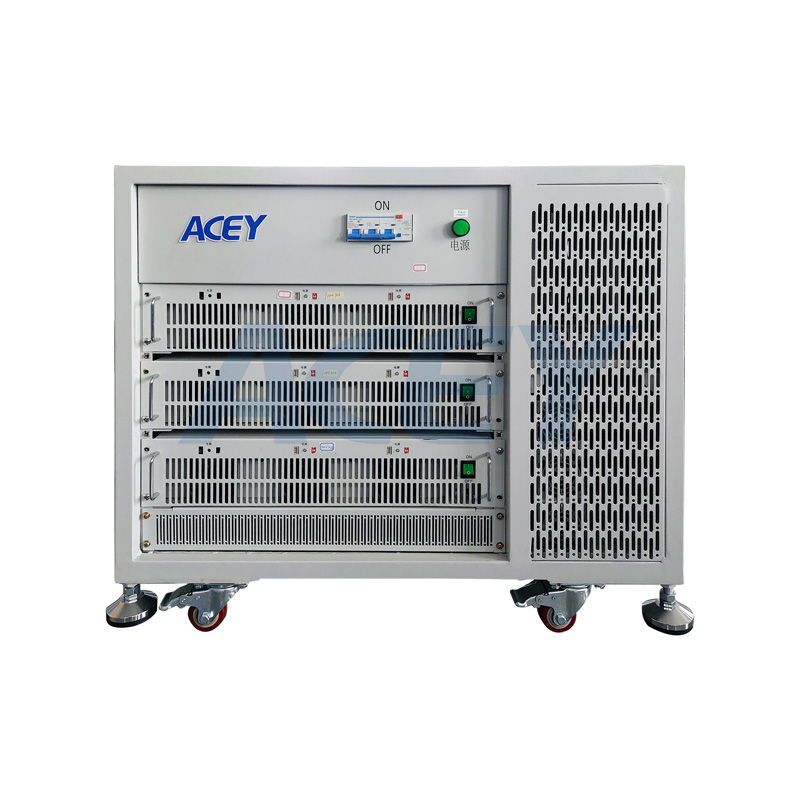

ACEY ACEY-BA10040-6 100V 40A Charge 40A Discharge Energy-Saving Battery Pack Cycler

Channel: 6

Action Mode: Completely independent

Main Channel Work Mode: Charging: constant current CC, constant current constant voltage charging CCCV; Discharging: constant current discharge CD, constant power CP; Standing, stopping.

Main Channel Test Abort Condition: Time, voltage, current, capacity, etc.

Voltage Range of Charge & Discharge: 10V-100V

Voltage Accuracy: ±（0.1%RD+0.1%FS）

Voltage Resolution: 1mV

Maximum Output Current: Discharge & Charge 40A

Minimum Output Current: 100mA

Current Accuracy: ±（0.1%RD+0.1%FS）

Current Resolution: 1mA

Output Power: Single channel continuous operation maximum power 0.4KW

Auxiliary Channel Parameter Cut-off Function: The main channel step can be set to stop or switch when the auxiliary channel signal reaches certain conditions.

Control Program: Support for power-down data protection, support for power outages, manual stopping and succession of tests from data files.

Safety Protection Conditions: Lower voltage limit, upper voltage limit, lower current limit, upper current limit, voltage and current trend.

Auxiliary Channel Protection Conditions: Upper voltage limit, lower voltage limit, upper temperature limit and lower temperature limit.

Cycle Times: Max 9999

Work Step Time Unit: h, min, s available

Data Logging: Min 5S

Data Display Method: Loop list, process list, detailed list.

Loop List: Cycle number, charge/discharge capacity, charge/discharge efficiency, charge/discharge energy, charge/discharge average voltage, etc.

Process List: Process serial number, operation mode, process time, capacity, energy, median voltage, termination voltage, termination current, etc.

Detailed List: Record serial number, system time, accumulated time, voltage, current, energy, power, etc.

Data Export Method: Data can be exported to EXCEL and chart files.

Curve Type: X and Y coordinates can be freely configured.

X Coordinate: Total time, charging and discharging capacity, cycle times, etc.

Y Coordinate: Total voltage, current, capacity, single body temperature, charge/discharge capacity, single body voltage, etc.

Software Protection: Power-down data protection, power-off pause renewal, over-voltage and over-discharge protection, over-current and under-current protection, capacity protection, over-temperature protection, abnormal current fluctuation protection, abnormal charging voltage rise rate protection, abnormal discharge voltage fall rate protection.

Hardware Protection: Battery reversal, over-current protection, over-voltage protection, short-circuit protection.

Alarm Function: Emergency cut-off switch, automatic shutdown after power failure, automatic load connection and disconnection.

Output Wire: Four-wire connection mode with separate current and voltage lines.

Maintainability: Modular structure, available spare parts, timely replacement, free repair during warranty period.

Test Channel and Battery Pack Connection Method: Alligator clamp

Working Mode: Continuous

Working Environment: Temperature -10℃～45℃ / Humidity: 10%～90%

Application

Applicable to the same port battery pack;

The output voltage range of the equipment is 10V~100V, which can be modulated and stable, and the output current range is 100mA~40A, which can be modulated and stable;

Battery module production and testing of battery manufacturers;

Battery testing of vacuum cleaners, electrician tools, scooter battery packs, energy storage, etc.

Functions

Battery pack cycle life test

Battery pack capacity test

Battery pack charge/discharge characteristics test

Battery pack temperature characteristics test

Advantages

1. Voltage and current accuracy ± (0.1%RD+0.1%FS), data recording time 5S/time, high stability.

2. Can be set for independent charging and discharging conditions after free grouping for each channel.

3. complete input and output, software and hardware protection, reverse connection protection, power failure renewal, short circuit protection, etc.

4. Channel start without inrush current, constant current to constant voltage seamlessly over, without any current surges

5. Network integrated management, a computer centralized control, support remote monitoring

6. Modular design of power unit, easy to produce, easy to maintain

7. Clear and comprehensive data, real-time monitoring and uploading to MES system
