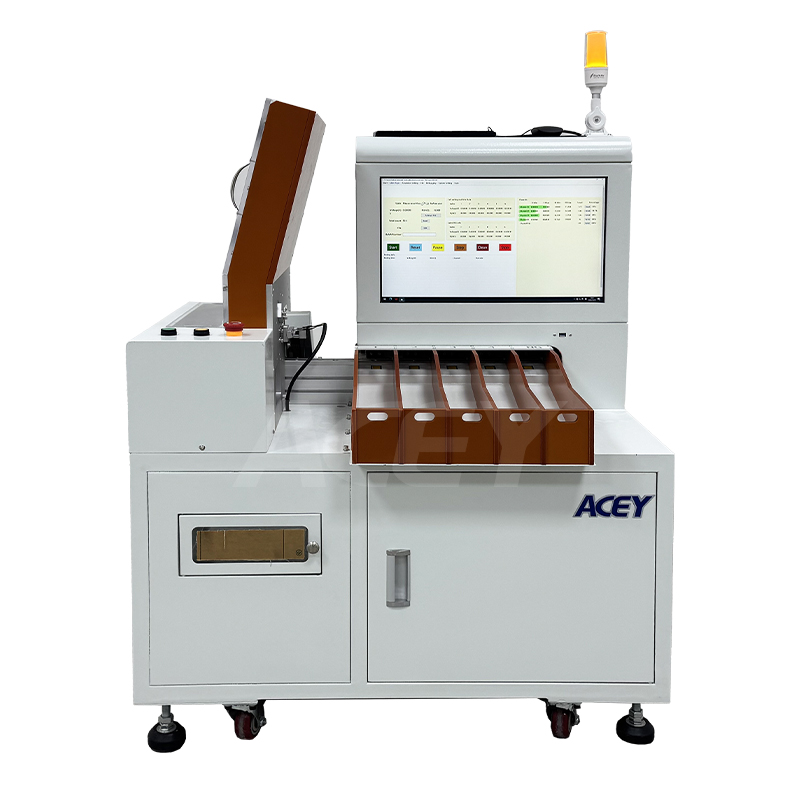

ACEY ACEY-AS5SP Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700

Compatible Cells: 14650, 18650, 21700, 26650, 32700 (Optional)

Sorting Channels: 4 OK Grades + 1 NG (No-Go) Grade

Sorting Speed: About 3,200 pcs/hour

Changeover Time: About 15 Minutes

Total Power: ≤ 1.5KW

MES Connectivity: Supported (Data collection & upload)

Scanning (Optional): QR Code, Barcode, Side-scanning

Core Advantages

1. Advanced PC-Based Control System

Unlike standard PLC setups, the ACEY-AS5SP uses a computer-integrated system. This allows for:

Superior Data Management: Easy generation of production reports and data analysis.

System Integration: Seamless communication with other machines and MES systems.

Flexible Programming: Faster parameter changes and model switching.

2. High Efficiency & Precision

Throughput: Processes approximately 3,200 pcs/hour.

Accuracy: Integrated with high-precision internal resistance testers for milliohm-level consistency.

Smart Rejection: Features a unique mechanism to isolate defective cells, ensuring only matched pairs proceed to the collection bin.

3. User-Centric Design

Quick Changeover: Switch between battery models (e.g., from 18650 to 21700) in just 15 minutes.

Ergonomic Loading: Hopper-style loading and organized collection bins simplify operator management.

Durable Build: Constructed with high-quality cold-rolled sheet metal and aluminum alloys for a sleek, industrial aesthetic.
