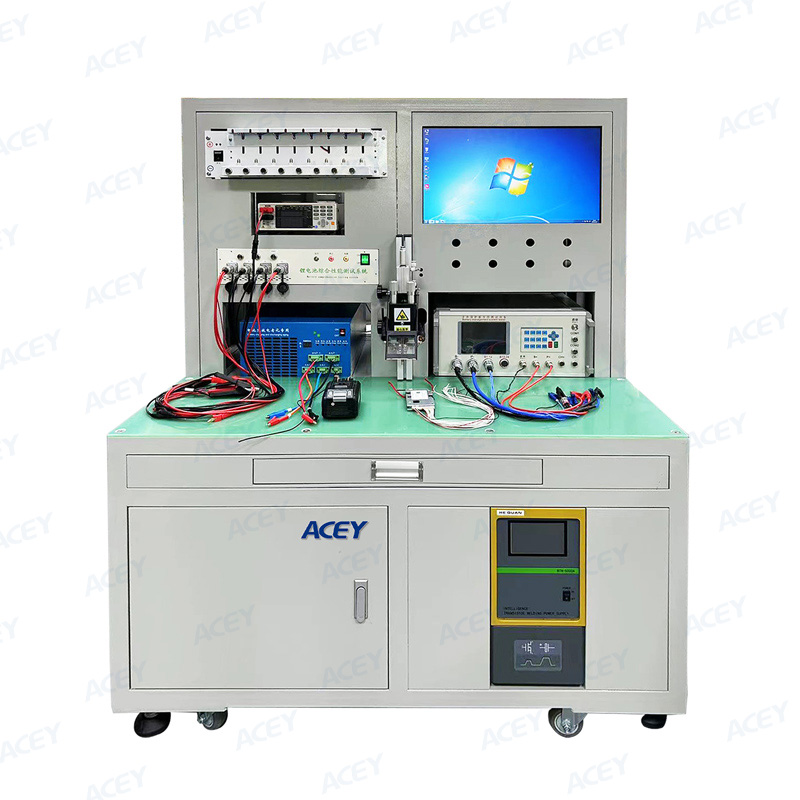

ACEY ACEY-AM11 All In One Cylindrical Battery Pack Assembly Line For 18650 21700 32700

Equipment efficiency: 10PPM

Equipment Marrying Rate: ≥ 98%

Size of sub-container: 8-channel 5V3A

BMS Tester Specifications: 4 string protection board tester

inner group tester: HK3561

welding power source: 220V 5000A transistor welding power supply

Battery pack comprehensive tester: 50V60A

aging cabinet: 30V10A20A

Control System: PC industrial computer (embedded system)

Input power consumption: 2KW

Input power: AC220V/50HZ

compressed air source: ≥ 0.6Mpa

Display: 21.5 inch Philips large display

Equipment Appearance Reference Dimensions: L*W*H=1200*800*1500mm

Weight of whole machine: 250KG

Product Features

Equipped with industrial control integration, all parameters of the battery can be traced and tracked, facilitating data management and simple operation.

Suitable for various types of batteries, easy to replace and operate.

Built in high-precision and universal HK3561 internal resistance tester, with high testing accuracy and fast speed.

A one-stop work platform that includes all necessary production process equipment from battery cells to finished battery packs, making it convenient for small-scale trial production, sampling, teaching, and other scenarios.

Product Structure

Workflow

1. Capacity grading (5V3A 8-channel capacity grading cabinet)

2. BMS tester (test BMS materials as required)

3. Internal resistance tester (test the internal resistance and voltage of the battery, and group and pair)

4. Welding power supply (use resistance welding machine to weld the battery in series and parallel)

5. Welding BMS (use electric soldering iron to correctly connect BMS to the battery pack)

6. Battery pack comprehensive performance test (test various performance of the battery pack)

7. Aging (30V10A20A charge and discharge aging test)
