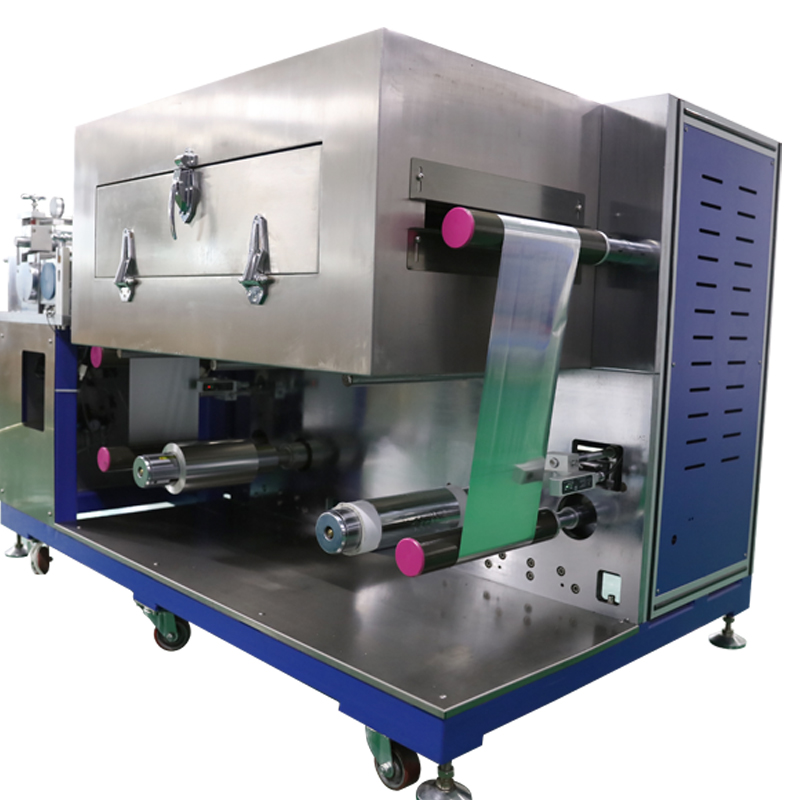

ACEY ACEY-AC300L Continuous Battery Electrode Coating Machine (300mm)

Power supply: Single-phase voltage AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 5KW

Gas source: 0.5-0.8MPa compressed air

Use environment: Recommended ambient temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference

Coating type: Continuous coating, intermittent coating

Guide roller width: 300mm

Coating width: Max.250mm

Mechanical speed: Max.800mm/min

Coating accuracy: Better than ±3μm (Edge error ±5μm)

Coating thickness: Depending on the size of the paste, 30~200μm

Thickness adjustment: Manual free adjustment, dial indicator display accuracy 1μm

Coating length: Single piece Max.5000mm, blank 10~100mm, accuracy ±0.5mm

Drying unit: Standard hot air drying (infrared drying and UV curing can be customized), single section 800mm long

Drying temperature: Max.150±5℃, can be set

Tension control: Max.60N

Reel diameter: 250mm

Winding accuracy: ±0.5mm

Dimensions: L1750 × W1000 × H1200mm

Weight: Approximately 900KG with caster base

1. It can be switched freely to realize continuous and intermittent coating;

2. Substrate tension control, stable tape travel, equipped with deviation correction device;

3. Hot-air oven, upper and lower double-sided blowing, high-quality drying effect;

4. Three-roll transfer coating, with a wider coating window;

5. Comma squeegee measurement, with precision adjustment mechanism, to obtain high coating precision;

6. PLC control, touch screen operation, convenient and easy to use;

7. Optional solvent recovery processing device
