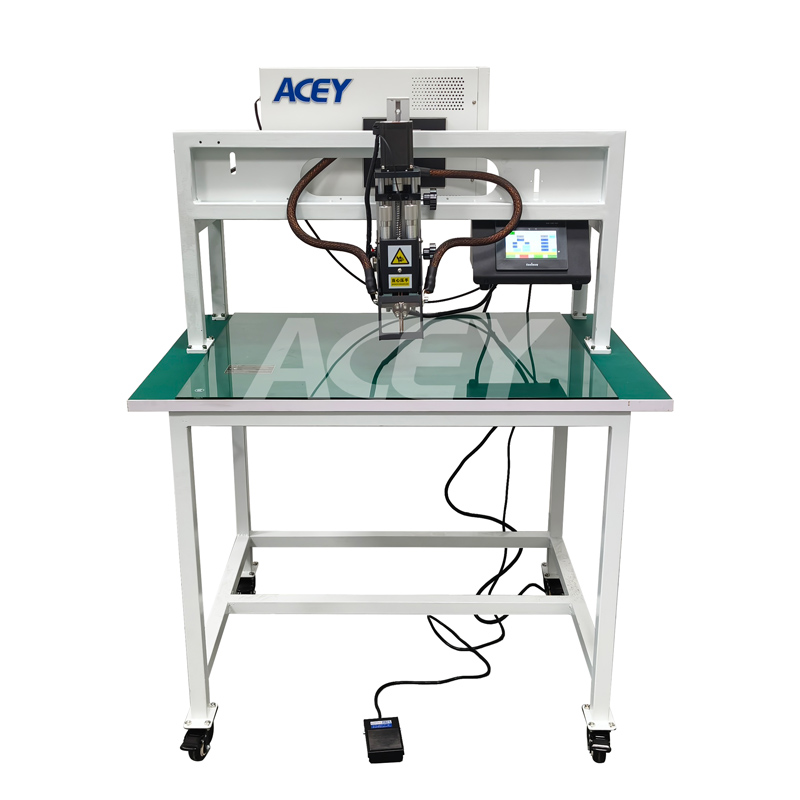

ACEY ACEY-8000T Professional Ebike Battery Spot Welder 18650 21700 Battery Pack Spot Welding Machine

Ambient Temperature: -30ºC to 50ºC

Humidity: Below 90%

Air Source Pressure: 0.4～0.6 MPa (pneumatic type only)

Power Supply Voltage: 220V or 380V - 50Hz/60Hz

Load Capacity: ≤200kg/m²

Grounding Type: Direct Grounding

Site Requirements: Free from pollution and strong electromagnetic interference

Installation Environment: Flat, vibration-free, and shock-free

Equipment Noise: ≤80dB

Equipment Dimensions (L × W × H): L900mm × W650mm × H1220mm

Equipment Weight: Approx. 60kg

Equipment Color: Computer White (customizable upon request)

Total Power: ≤1.5KW

Features

Adopting an industrial-grade modular intelligent control platform.

Applicable battery types: Cylindrical lithium cells, such as 18650 21700 26650 32650 32700 32140 33140.

Welding materials: nickel-plated steel, pure nickel, copper, and other metal materials.

Welding control method: Foot pedal switch.

Features: Weld spot tracking, and detection/recording/alarm functions for sparking, false welding, and missed welds.

Optional welding heads: Pneumatic welding head or electric welding head.

Welding power supply: Transistor welder with 8000A output current.

Welding pressure: The welding needle pressure is stable, reliable, and easy to adjust.

Cooling method: Forced air cooling.
