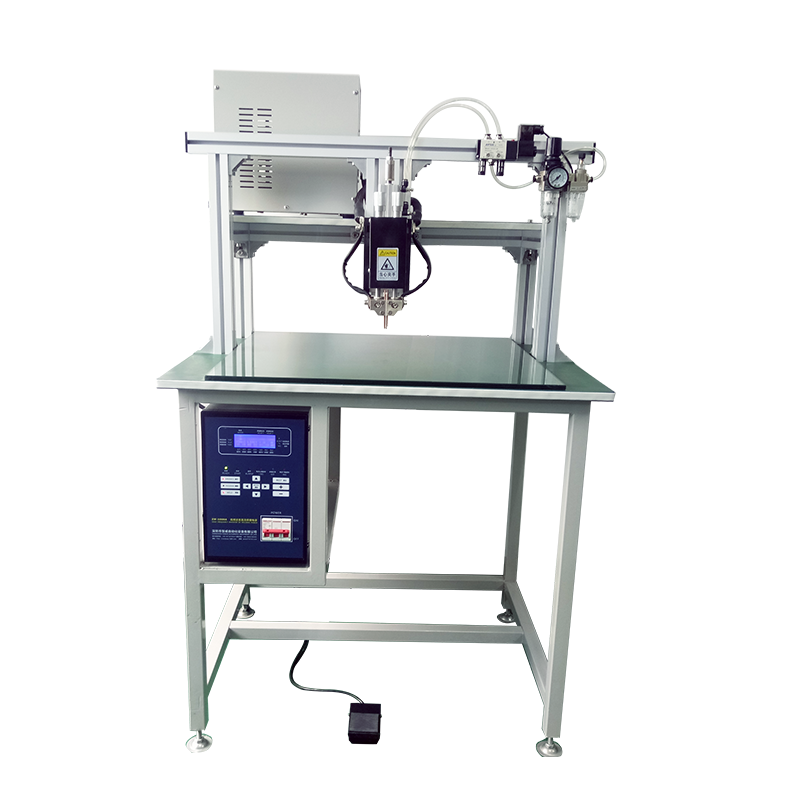

ACEY ACEY-5000D 5000A Battery Pack Welding Machine Inverter Gantry Spot Welder With DC Power

Maximum Transformer Output Power: 35KVA

Maximum Output Short Circuit Current: 5000A

Floating Voltage: 10V

Control Mode: Constant current control

Cooling Mode: Forced air cooling

Condition: 8

Application: Electronic components, battery nickel plates, enameled wire, sensor wire, halogen lamps, etc.

Maximum Parallel Welding Thickness: 0.03mm–0.5mm

Maximum Upper and Lower Butt Welding Thickness: 0.3mm + 1mm

Machine Weight: 23.5kg

External Dimensions: L810mm × W610mm × H1220mm

Input Power: 3-phase AC380V±10%, 50/60Hz

Features

1. panel Microcomputer control, high precision welding machine with plc display panel.

2. Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.

3. Industrial circuit design, safe and reliable.
