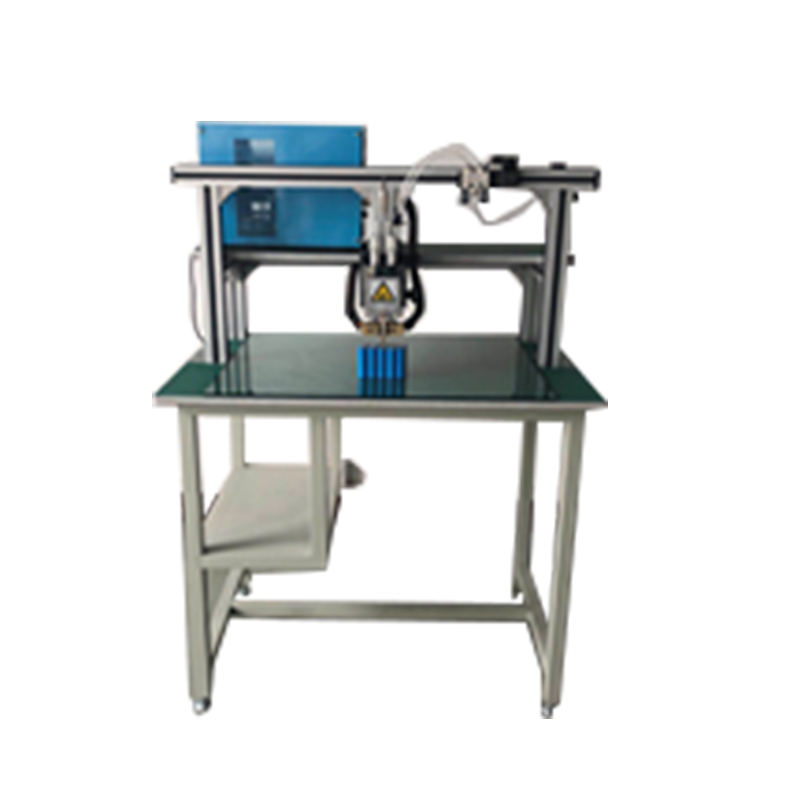

ACEY ACEY-1000C Manual AC Power Gantry Spot Welder For Battery Pack Assembly

Energy Storage Capacitor: 6600UF

Maximum Transformer Output Power: 18KVA

Maximum Output Short Circuit Current: 5000A

Pre-welding Voltage: 80.0V–330V adjustable, accuracy 0.5V

Welding Voltage: 80.0V–330V adjustable, accuracy 0.5V

Welding Time: 1.0ms–20.0ms adjustable, accuracy 0.1ms

Applicable Scope: Maximum parallel welding thickness 0.03mm–0.15mm; maximum upper and lower butt welding thickness 0.1mm + 0.3mm

Machine Weight: 40KG

Dimensions: 350L × 180W × 280H mm

Input Power Supply: Single-phase AC220V/50Hz

Input Current: <5A

Input Power: <1200W

Features

1. This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces.

2. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition.
