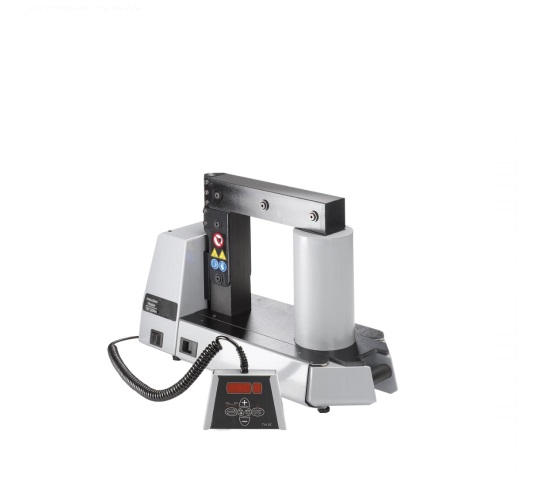

Acepom TIH030M Small induction heater

m20performance: 28 kg (61.7 lb)

Voltage, V/Hz: 230V/50-60Hz

Bearing:

- Maximum weight: 40 kg (88 lb)

- Maximum bore diameter: 20 - 300 mm (0.8 - 11.8 in.)

Temperature control:

- Range: 0 - 250 °C (32 - 482 °F)

- Magnetic probe: Yes, K-type

- Accuracy (electronics): ± 2 °C (± 3.6 °F)

Time control:

- Range: 0 - 60 minutes

- Accuracy: ± 0,01 sec.

Maximum heating temperature*: 250°C (482 °F)

Thermometer mode: Yes

Bearing mode: Yes

Power setting: 2-step; 50% or 100%

Demagnetisation according to norms (automatic): Yes (<2 A/cm)

Can heat sealed bearings: Yes

Can heat pre-greased bearings: Yes

Error guiding codes: Yes

Thermal overload protection: Yes

Control panel: Control panel and LED display integrated in remote control

Operating area (w x h): 100 x 135 mm (3.9 x 5.3 in.)

Coil diameter: 95 mm (3.7 in.)

Dimensions (w x d x h): 450 x 195 x 210 mm (17.7 x 7.6 x 8.2 in.)

Total weight, including yokes: 20,9 kg (46.0 lb)

Maximum power consumption: 2,0 kVA

Standard yokes:

45 x 45 x 215 mm (1.7 x 1.7 x 8.4 in.) for heating bearings with bore diameter of 65 mm (2.6 in.) and larger.

28 x 28 x 215 mm (1.1 x 1.1 x 8.4 in.) for heating bearings with bore diameter of 40 mm (1.6 in.) and larger.

14 x 14 x 215 mm (0.5 x 0.5 x 8.4 in.) for heating bearings with bore diameter of 20 mm (0.8 in.) and larger

Core cross section: 45 x 45 mm (1.7 x 1.7 in.)

Bearing support arms: Yes, foldable

Yoke storage: Yes, internal integrated in foldable bearing support arms

Cooling fan: No

Swivel arm: No

Housing material: Steel and glass filled polyamide
