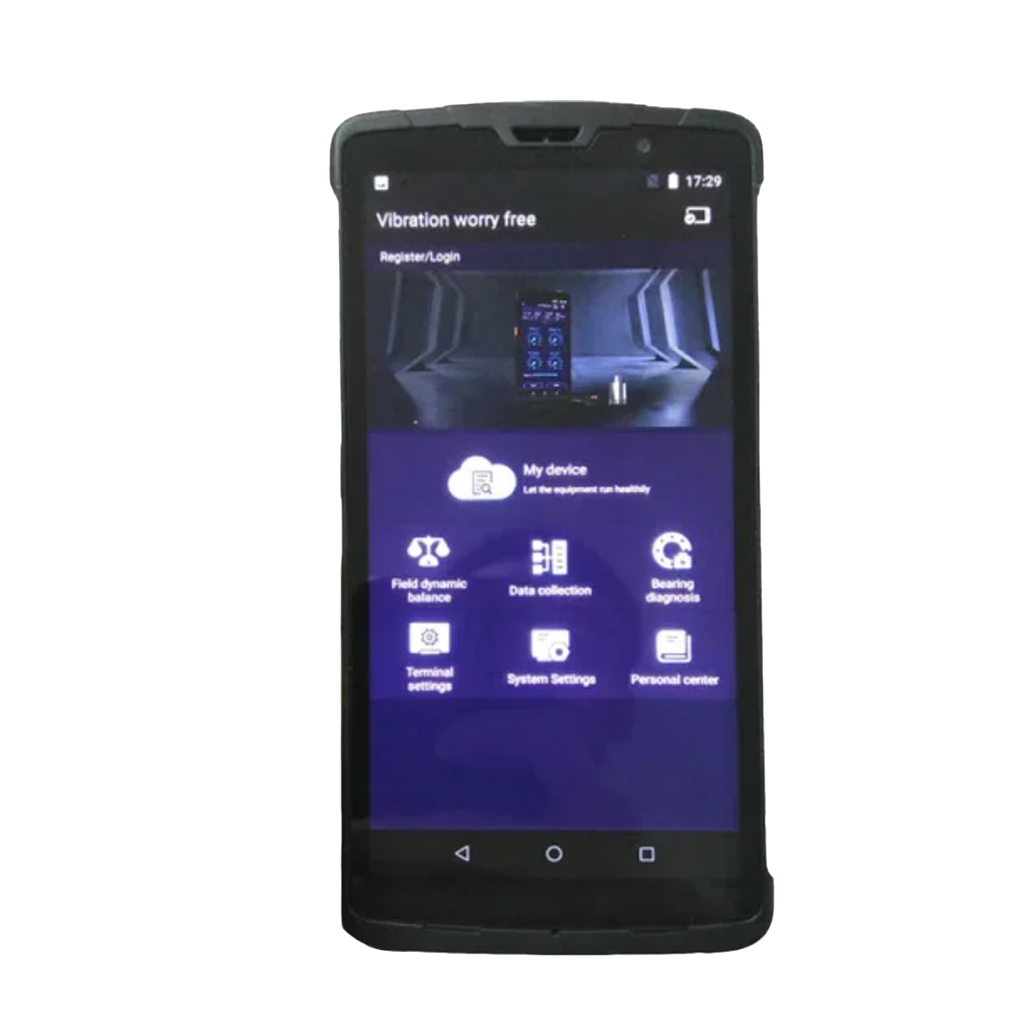

Acepom FRE-Pro Dynamic Balancer /Vibration & Bearing Checker (0.1—199.9 m/s2)

Hardware: ARM920T,400MHz

Comminication: Blue tooth、WIFI

Acquisition

Vibration:

Sensor：ICP Acceleration sensor

Integral: No integral, single integral, Double integral; Acceleration, velocity and displacement are collected simultaneously

Acquisition frequency: 100,200,500,lk,2k,5k,10k, 20k

Range :Acceleration：（A）（single peak）:0.1—199.9 m/s2

Velocity:（V）（True RMS）:0.1—199.9 mm/s

Displacement：（D）（Peak-Peak）:1—1999um

Error range：±5%

Electronic tags: Radio frequency card Electronic label

Radio frequency card Electronic label

Vibration signal analysis function

Statistical analysis: Kurtosis index; Waveform indicators; Margin index; Pulse index

Spectrum analysis: Side frequency Spectrum, Multiple frequency Spectrum

Waveform analysis: the cursor

Work model

Point inspection: Temporary task, new task, factory inspection, task management, result upload

Patrol Inspection: Management: RADIO frequency card

Power supply

Power: 3.7V Li-ion battery，Work continuously for 12 hours，3600mAh

Charge: USB

Work temperature: 0°C ~ 50°C
