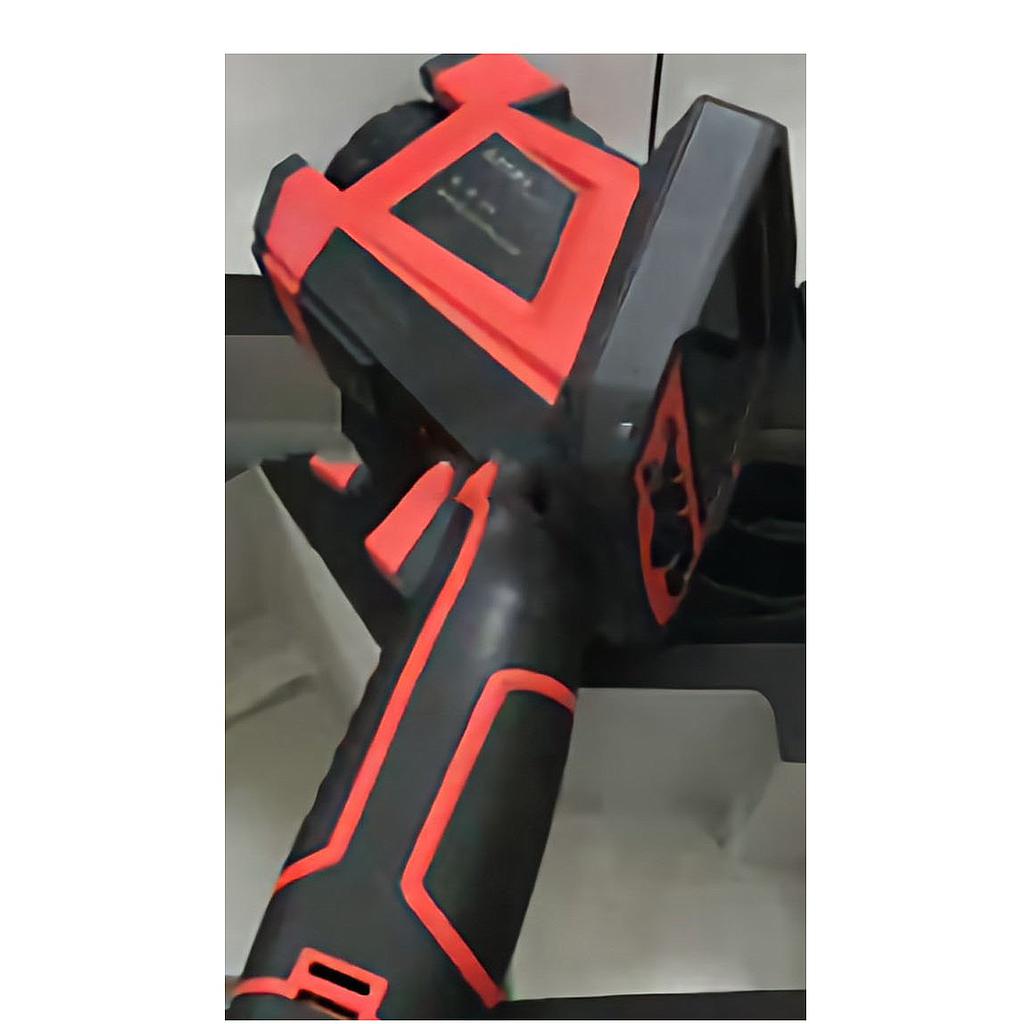

Acepom E20 Infrared Thermal Imager (-20~350℃; IP54; 2.72mrad)

Detector characteristics:

Detector type: Un-cooled FPA micro-bolometer

Array size/format: 160×120

Image characteristics

Field of view/min focus distance: 25°×19°/0.1m

Spatial resolution(IFOV): 2.72mrad

Thermal sensitivity: ≤0.06℃@30℃

Frame frequency: 50/60Hz

Focus: Manual

Spectral range: 8-14um

Image display:

LCD display: 3.5" TFT LCD, 640 x 480

Measurement:

Temperature ranges: -20℃- +350℃

Accuracy: ±2°C or ±2% of reading, Whichever is greater

Measurement correction: Automatic/manual

Setup functions: Date/time, temperature unit, language

Emissivity correction: Variable from 0.01 to 1.0

Image storage:

Storage card: 8G SD card, max 16G

Power source:

Battery type: Li-Ion, rechargeable

Battery operating time: 3 hours continuous operation

Power saving: Auto-sleep and auto-shut down

Physical characteristics:

Weight: 980g

Dimension: 105*245*230mm

Datasheet
