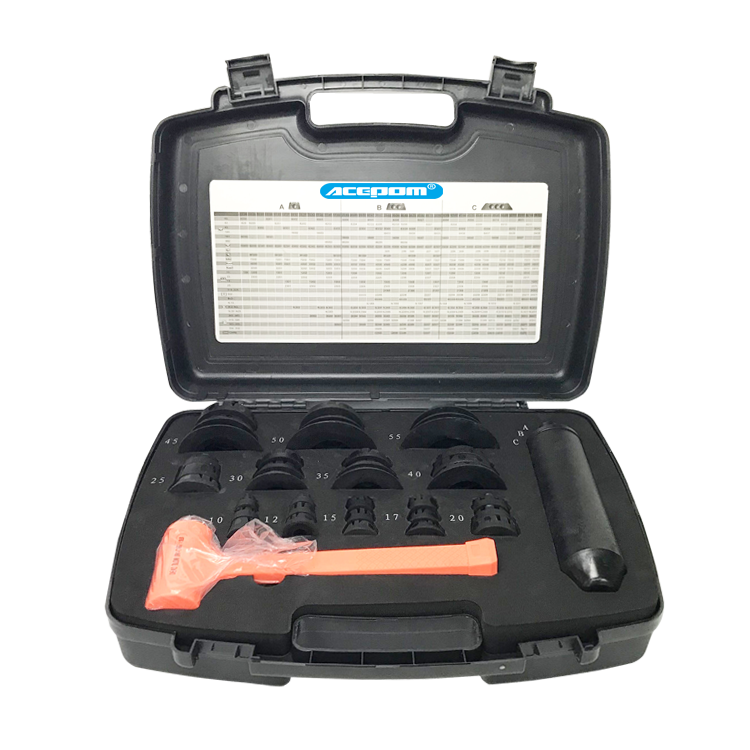

Acepom ACEPOM20-36 Bearing fitting tool kits (10-120mm, 36 chi tiết)

Bore diameter: 10–55 mm (0.39–2.17 in.)

Outer diameter: 26–120 mm (1.02–4.72 in.)

Sleeves Maximum shaft length:

Sleeve A: 220 mm (8.7 in.)

Sleeve B: 220 mm (8.7 in.)

Sleeve C: 225 mm (8.9 in.)

Hammer: ACEPOM20-36-H, weight 0,9 kg (2.0 lb)

Carrying case dimensions: 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)

Number of rings: 36

Number of sleeves: 3

Weight (including carrying case): 4,4 kg (9.7 lb)

Datasheet
