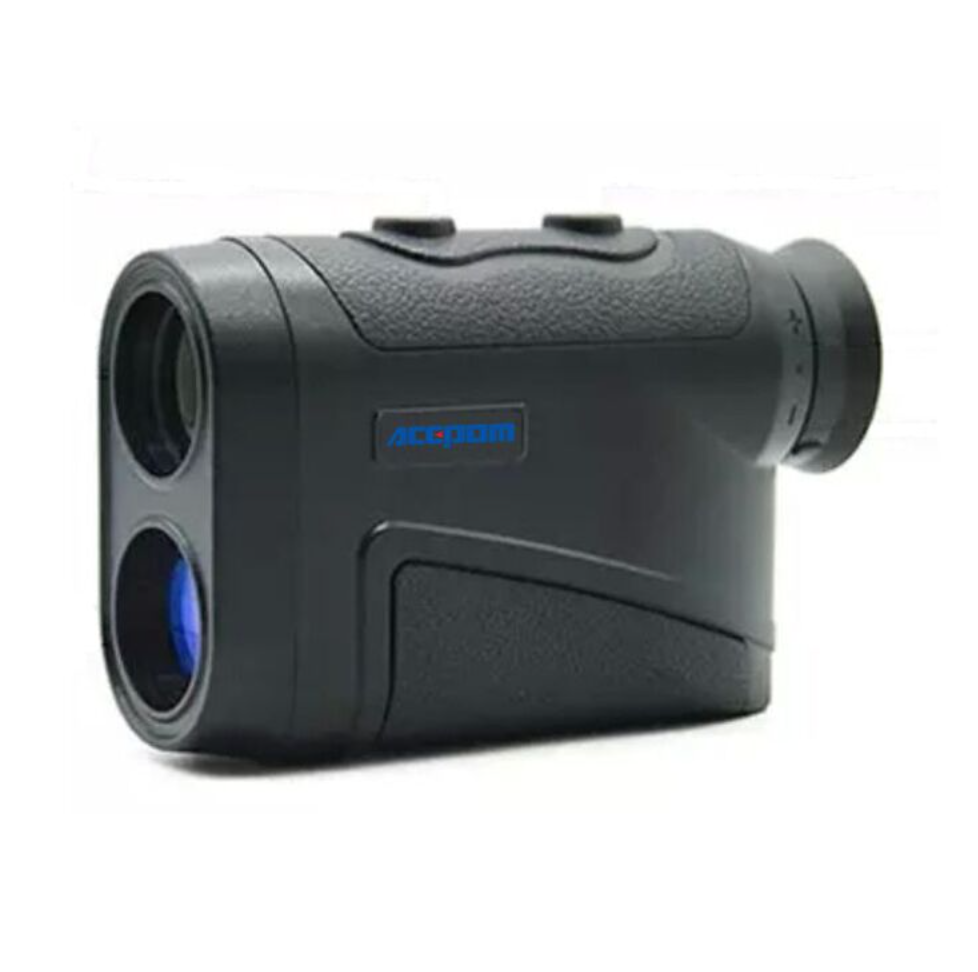

Acepom ACEPOM DIST2000 Laser Range Finder (3.5-2000m)

Ranging method: semiconductor laser ranging (safe for human eyes)

Wavelength: 905 nm

Ranging range: 3.5-2000m

Range resolution: ±0.1m

Ranging error: ± 0.3m

Range display: LCD display through the field of view

Structure: hand-held, with telescope function

Telescope power: 8 times

Telescope aperture: 25mm

Lens quality: multilayer optical coating

Weight: 341 g

The measurement range of tilt Angle is ±90°

The measurement accuracy of tilt Angle is ±0.25°

Function: point to point distance measurement, horizontal distance measurement, height measurement, pitch Angle measurement

Data transmission: RS-232 serial port

Size: length: 109mm(excluding eyepiece)/120mm (including eyepiece), width: 48mm, height: 80mm

Use humidity: ≤80%

Exit pupil diameter: 3.8mm

Exit pupil distance: 14mm

Focus mode: eyepiece manual focus

Measuring mode: one - piece machine for measuring height and Angle

Power supply: cr-2 battery (3V)

Dustproof and waterproof :IP64

Display: liquid crystal display

Tripod interface: yes
