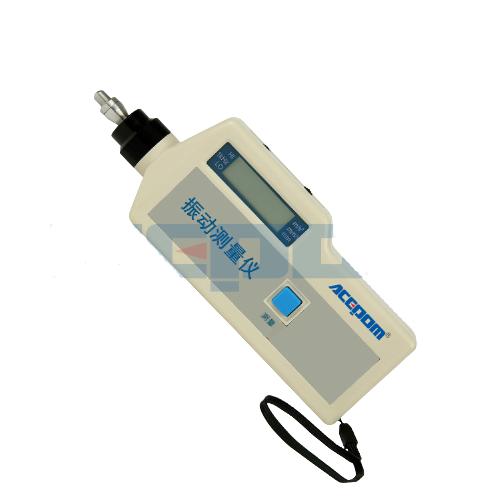

Acepom ACEPOM312 Unibody Vibration Meter (0.1~199.9m/s²; 0.1~19.9m/s; ±10%)

Probe: Piezoelectric shear acceleration probe

Measurement range:

Acceleration: 0.1~199.9m/s²

Velocity: 0.1~19.9m/s

Displacement: 0.001~1.999mm

Accuracy: ±10%H±2digits

Frequency range:

Acceleration: 10Hz～1kHz(LO); 1kHz～15kHz(HI)

Velocity: 10Hz～1kHz

Displacement: 10Hz～1kHz

Display: 3-1/2digital display, refresh per second, push MEAS to measure, release to hold

Singnal Output: AC, full range is 2V, access to headphone VP-37

Power: continously work 25h with one 9V battery

Environment: -10~50℃，<90%RH

Size: 185(H)×68(H)×30(D) mm

Weight: 250g

Standard Configuration:

- Host: 1

- Acessories:

Short lever S: 1

Long lever: 1

Belt: 1

Battery: 1

Manual: 1

Datasheet
