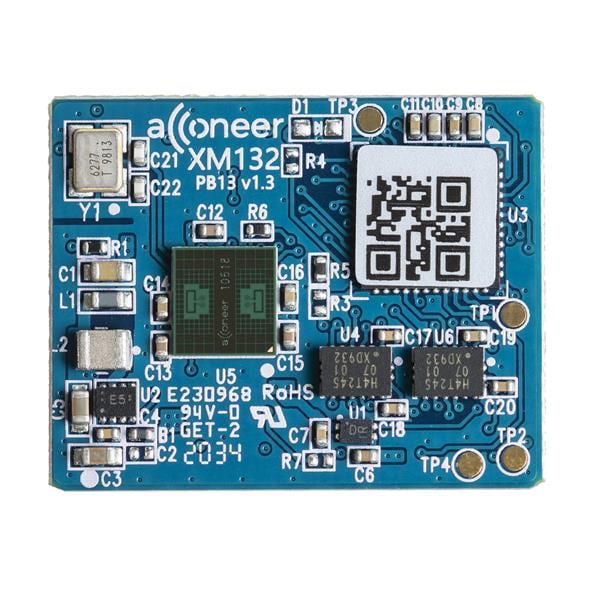

Acconeer XM132 A1 Radar Sensor Entry Radar Module
ManufacturerAcconeer(View more products from this manufacturer)
ModelXM132
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 20 mm
Length: 25 mm
Frequency: 60.5 GHz
Beam Angle: 60 deg
Dimensions: 25 mm x 20 mm
For Use With: A111, STM32G071CBU6
Interface Type: GPIO, I2C, UART
Mounting Style: SMD/SMT
Sensing Distance: 500 mm to 10 m
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 VDC
Supply Voltage - Min: 1.8 VDC
Operating Supply Voltage: 1.8 V to 3.6 V
Tool Is For Evaluation Of: A111, STM32G071CBU6
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
