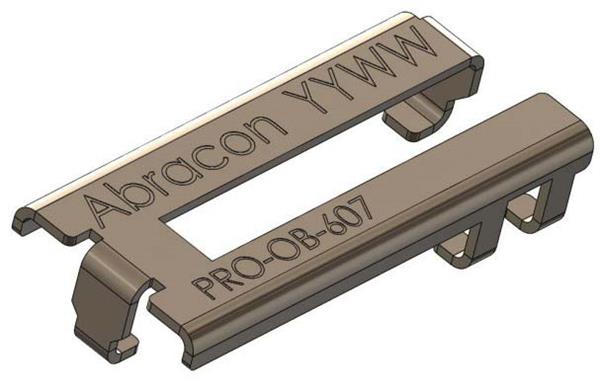

Abracon PRO-OB-607 On-Board Internal/Embedded Stamped Metal Surface Mount

Gain: - 0.6 dBi

Style: Metal

Width: 4.3 mm

Height: 2 mm

Length: 9.9 mm

Bandwidth: 97 MHz

Impedance: 50 Ohms

Application: M2M, Remote Technology / Monitoring, Network Devices, Consumer Tracking, Smart Home, Smart Wearables

Polarization: MIxed Linear

Mounting Style: PCB Mount

Electrical Type: PIFA

Frequency Range: 2.4 GHz to 2.497 GHz

Number of Bands: 1 Band

Center Frequency: 2.4485 GHz

Mechanical Style: Stamped

Ground Plane Size: 48 mm x 18 mm

Maximum Frequency: 2.497 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
