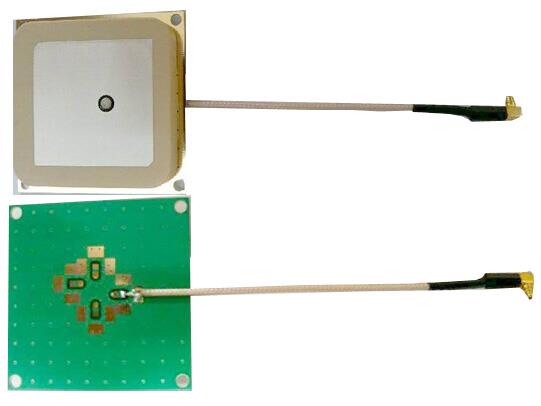

Abracon ARRSN5-915.000MHz Passive Antenna Internal/Embedded Passive Patch Connector Mount

Gain: 2.5 dBi

VSWR: 1.5

Style: Ceramic

Width: 50 mm

Height: 9.4 mm

Length: 50 mm

Bandwidth: 5 MHz

Impedance: 50 Ohms

Cable Type: 110 mm RG178

Technology: RFID Reader

Application: Industrial Automation, Smart Cards, Asset Management, Manufacturing, Field Mobility, Transportation

Cable Length: 110 mm

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: Patch

Maximum Frequency: 918 MHz

Minimum Frequency: 912 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: MMCX-J3

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
