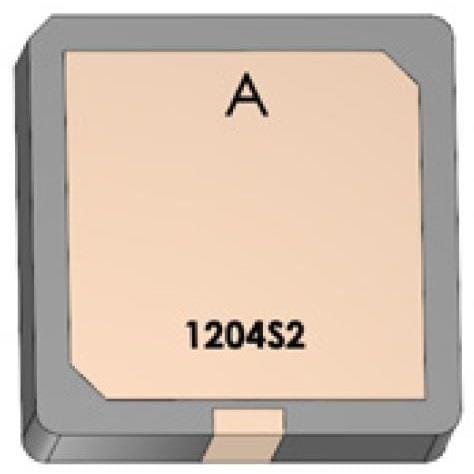

Abracon APARN1204-S2450 Passive Antenna Internal/Embedded Active Patch Surface Mount Solder

Gain: 2 dBi

VSWR: 3.0

Style: Ceramic

Width: 12 mm

Height: 4 mm

Length: 12 mm

Bandwidth: 100 MHz

Impedance: 50 Ohms

Application: Drones, Robotics, AR/VR Applications, Industrial Controls

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Mechanical Style: Patch

Maximum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
