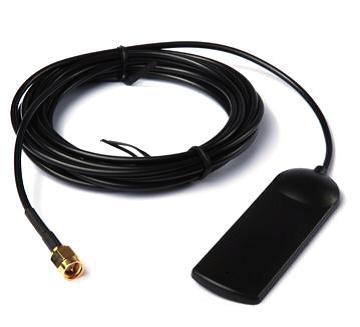

Abracon APAMS-103 Passive Antenna 900/1800 MHZ BW 90/170

Gain: 2 dBi

VSWR: 2:1

Style: I-Bar

Width: 25 mm

Height: 3.8 mm

Length: 78 mm

Bandwidth: 90 MHz, 170 MHz

Impedance: 50 Ohms

Cable Type: RG174

Technology: GSM

Application: Wireless Communications, Vehicle Monitoring

Unit Weight: 41.530 g

Cable Length: 2 m

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 915 MHz, 1.795 GHz

Mechanical Style: Module

Maximum Frequency: 1.88 GHz

Minimum Frequency: 870 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM, GPRS, CDMA, UMTS
