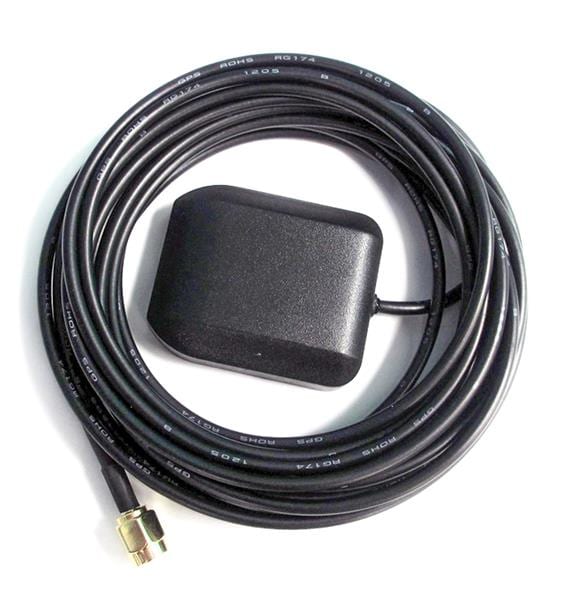

Abracon APAMPG-130 Active Antenna External Puck Magnetic Mount SMA Male

Gain: 5 dBi

VSWR: 1.5:1

Style: Square

Width: 37 mm

Height: 85 mm

Length: 44 mm

Bandwidth: 8 MHz, 16 MHz

Impedance: 50 Ohms

Cable Type: 400 cm RF Cable

Technology: GPS, GLONASS

Application: Automotive Navigation, Automotive Monitoring, Personal Tracking

Unit Weight: 125.062 g

Cable Length: 4 m

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Magnetic Mount

Number of Bands: 2 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Module

Maximum Frequency: 1.618 GHz

Minimum Frequency: 1.572 GHz

Termination Style: Connector

Antenna Connector Type: SMA-J3

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
