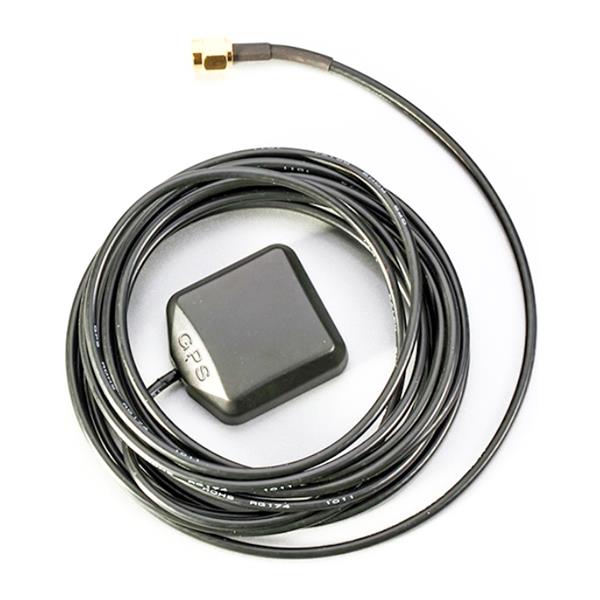

Abracon APAMP-125 Indoor Antennas RF ANT 1.575GHZ DOME SMA ML MAG
ManufacturerAbracon(View more products from this manufacturer)
ModelAPAMP-125
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 5 dBi
VSWR: 1.5:1
Style: Dome
Width: 35 mm
Height: 12 mm
Length: 38.3 mm
Bandwidth: 10 MHz
Impedance: 50 Ohms
Cable Type: RG174
Technology: GPS L1 / Galileo E1
Application: GPS L1/Galileo E1
Cable Length: 300 mm
Polarization: RHCP
Mounting Style: Magnetic Mount
Number of Bands: 1 Band
Maximum Frequency: 1.576 GHz
Minimum Frequency: 1.574 GHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: GPS
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
