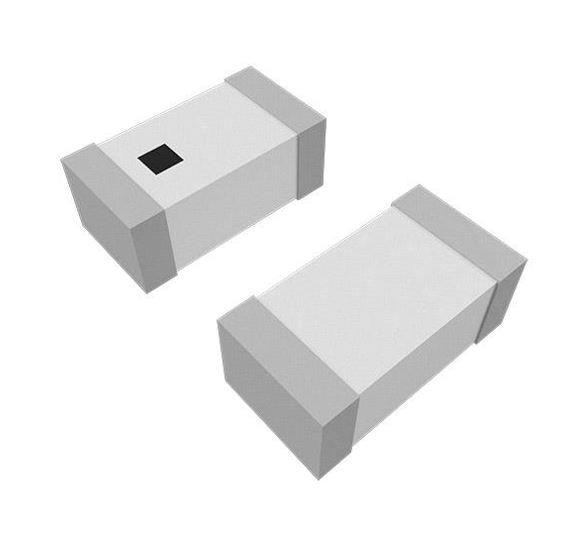

Abracon AMCA31-2R450G-S1F-T3 Passive Antenna 2.45 GHZ BW -1DBI 3W

Gain: 2.3 dBi

VSWR: 1.6:1

Style: Ceramic

Width: 1.6 mm

Height: 1.2 mm

Length: 3.2 mm

Bandwidth: 100 MHz

Impedance: 50 Ohms

Technology: Bluetooth, WLAN

Application: Wireless Application, Bluetooth Headsets, Industrial Automation, High Density Applications, PROFINET, Video Game Systems, Computer Mouser and Keyboard

Unit Weight: 143.050 mg

Polarization: Linear

Power Rating: 3 W

Mounting Style: SMD/SMT

Frequency Range: 2.4 GHz to 2.5 GHz

Number of Bands: 1 Band

Mechanical Style: Chip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
